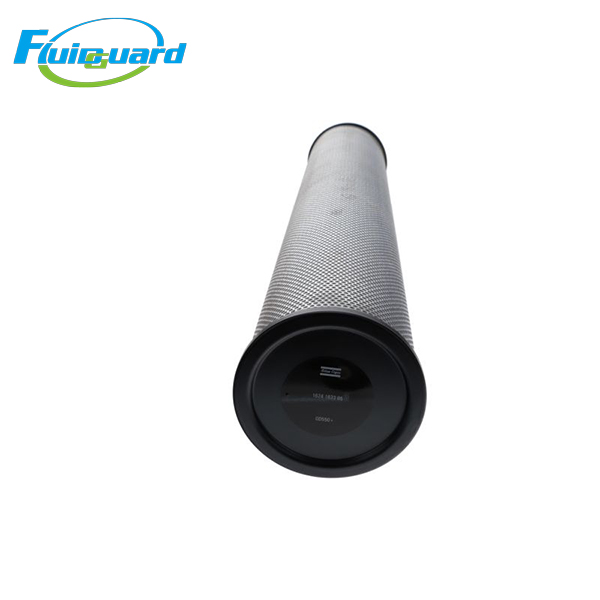

2901200510 Coalecing Filter

Model : 2901200510

Type : Coalescing Filters

Replacement for : 2901200510

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: 2901200510

Core Technical Specifications

Core Function: Eliminate gaseous oil vapor, hydrocarbon fumes, oily odors; capture residual trace submicron oil mist & solid particles ≥0.01 μm

Continuous Operating Temperature: 2°C ~ 80°C

Standard Replacement Cycle: Replace after 2,000 operating hours or 12 months, whichever comes first

Differential Pressure Thresholds

Initial clean differential pressure: ≤0.015 MPa

Mandatory replacement alarm: ΔP ≥ 0.07 MPa

Sealing & Support Construction

End Caps: Reinforced corrosion-resistant PA polyamide

Seal: Dual NBR nitrile rubber flat gaskets, zero air bypass leakage

Key Product Advantages

High-specific-surface-area activated carbon composite delivers stable long-term adsorption performance for mineral oil vapor and hydrocarbon gases, suitable for high-humidity factory environments with underperforming aftercoolers/refrigerated dryers, effectively protecting downstream adsorption dryer molecular sieve from permanent oil fouling.

Optimized low airflow resistance to cut central compressor station energy consumption

Uniform composite media layout minimizes airflow resistance, avoiding excessive pipeline pressure loss that increases air compressor motor power draw, significantly lowering long-term electricity operating costs for large central air treatment systems.

Rigid all-stainless steel support cage with hydrolysis & abrasion resistance

Double-layer stainless steel inner/outer cages prevent media collapse under continuous large-volume airflow; durable dual rubber seals resist aging from lubricant mist and condensed water, maintaining permanent airtight sealing without bypass leakage.

Working Principle

The front glass fiber layer traps residual tiny oil mist and fine solid contaminants;

Air penetrates the high-density activated carbon adsorption layer; gaseous oil vapor, volatile organic compounds and odor molecules are fully captured by carbon micropores;

Clean, dry, odorless and oil-free compressed air flows out from the inner stainless steel support tube to terminal precision production equipment;

Trace condensed liquid oil captured by the front filter layer drains down to the filter bowl by gravity and automatic drain valve.

Application Industries

Large automotive electrostatic spray workshops, multi-line heavy laser cutting equipment, large pharmaceutical sterile filling cleanroom lines, mass food aseptic packaging plants, PCB & semiconductor chip manufacturing facilities, laboratory large precision analytical instruments, factory centralized medical breathing air pretreatment, heavy industry central air compressor stations, large solvent mass spraying production lines, full-automatic ultra-precision large pneumatic automation production lines, post-protection filter for large adsorption dryers to eliminate residual oil vapor.
