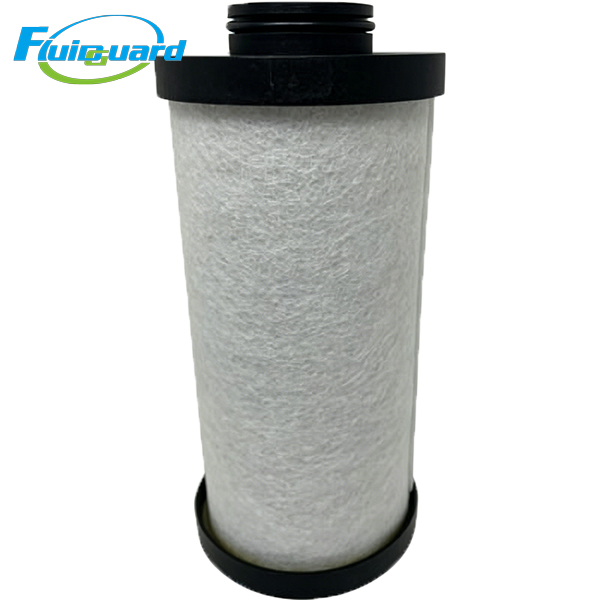

Coalescing Filters

Part No: 250024-434

Filter Media: Silicon-free multi-layer borosilicate microglass fiber composite, outer hydrophobic anti-re-entrainment foam, perforated metal inner support cage

Filtration Performance:

Absolute solid particle retention: 0.01 μm

Max residual liquid oil aerosol carryover: ≤0.003 ppm

Operating Temperature Range: 2℃ ~ 66℃

Initial Differential Pressure: ≤0.012 MPa

Replacement Trigger Differential Pressure: ≥0.06 MPa

Standard Service Life: 8,000 working hours or 12 months

Net Weight:  0.5 kg

Core Functions

Captures invisible submicron oil mist, ultra-fine particulate dust and residual condensate that upstream pre-filter & medium coalescer cannot fully intercept

Coalesces tiny suspended oil droplets; outer hydrophobic foam automatically drains separated liquid into filter bowl to avoid secondary liquid re-entrainment into airflow

Greatly reduces oil saturation load of downstream activated carbon element, extends carbon filter service cycle and cuts overall air treatment maintenance expenditure

Supplies ultra-clean low-oil compressed air to protect automotive high-gloss painting lines, electronic cleanrooms, pharmaceutical filling equipment and precision lab instruments from oil contamination and defective products

Typical Application Scenarios

Medium factory central air compressor stations, automotive parts spray workshops, mass lithium battery production, pharmaceutical sterile filling lines, electronic component assembly cleanrooms, food & beverage odor-free packaging, CNC machining clusters, laboratory precision testing equipment

Product Features

Silicon-free borosilicate microglass depth media eliminates silicon precipitation risk, fully meets strict air purity standards of automotive topcoat, optical lens polishing and semiconductor manufacturing industries

Integrated solid black polyurethane end caps with built-in EPDM sealing rings, resistant to high temperature and mineral/synthetic compressor lubricant oil, zero air leakage after installation

Perforated metal inner support cage provides rigid structural strength; filter media will not deform, sag or collapse under long-term continuous airflow impact

Standard plug-in bayonet mounting design, tool-free quick disassembly and replacement to minimize factory production downtime
