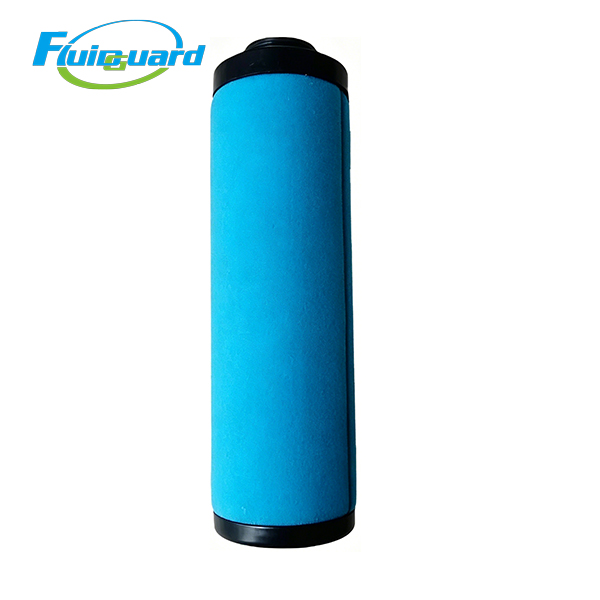

Model : 2901200302
Type : Coalescing Filters
Replacement for : 2901200302
Small & medium machinery processing workshops, auto parts spray pretreatment lines, food packaging air supply, CNC machining centers, textile production lines, small lithium battery pilot labs, refrigerated dryer pre-filtration, factory general central pneumatic pipeline pretreatment
Part numbers marked "replacement" are not affiliated with the original manufacture.
Part No: 2901200302
Filtration Performance:
Absolute solid particle retention: 1 μm
Max residual liquid oil mist: ≤0.1 ppm
Max Working Pressure: 1.6 MPa
Operating Temperature Range: 2℃ ~ 65℃
Initial Differential Pressure: ≤0.005 MPa
Replacement Trigger Differential Pressure: ≥0.035 MPa
Typical Application Scenarios
Small & medium machinery processing workshops, auto parts spray pretreatment lines, food packaging air supply, CNC machining centers, textile production lines, small lithium battery pilot labs, refrigerated dryer pre-filtration, factory general central pneumatic pipeline pretreatment
Product Features
High dirt-holding capacity pleated silicon-free microfiber media, avoids silicon precipitation risk for automotive topcoat and optical polishing production
Integrated one-piece polyurethane top cap with built-in EPDM O-ring seal, resistant to high temperature and synthetic compressor lubricant oil, zero air leakage after installation
Thickened internal plastic support cage resists long-term continuous airflow impact; filter media maintains stable shape without collapse and consistent low pressure drop during full service cycle
Standard bayonet plug-in design, tool-free quick replacement to minimize production line downtime
