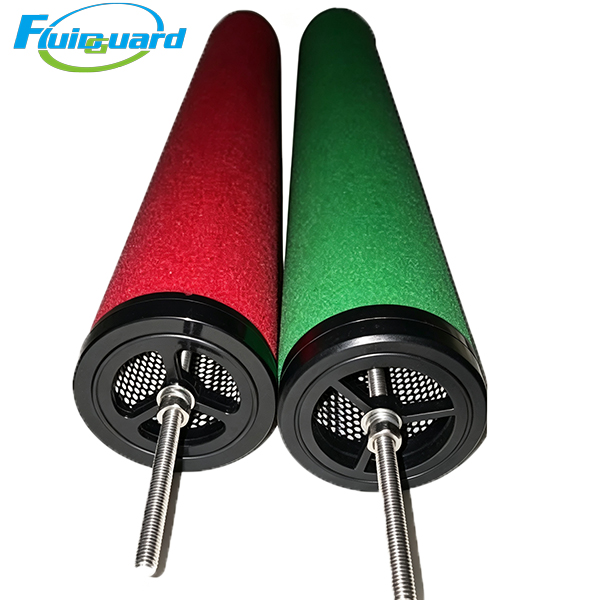

Coalescing Filters

Part No: 2258290129

Filtration Accuracy: 0.01μm, Filtration Efficiency: 99.93%

Function: Remove solid dust, rust particles and desiccant debris from dry compressed air. Not for oil mist or liquid water removal.

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Dimension: Φ108×482mm

Service Life: 5000‑8000h; replace when pressure drop reaches 0.35bar; standard service interval 8000 hours or 1 year

Main Features

2258290129 dry‑dust filter element is specially designed for downstream of desiccant air dryers. It efficiently removes fine solid dust, pipeline rust and desiccant debris, complies with ISO8573‑4 compressed‑air particle standard.

Pleated glass‑fiber media provides high dirt‑holding capacity, anti‑fiber shedding and low pressure drop under dry operating conditions.

Must be installed after desiccant dryer. Not suitable for air with large amount of liquid water or liquid oil. Liquid contaminants will rapidly block media and cause premature failure.

Applied for post‑protection for electronics, painting and precision pneumatic applications with strict particle cleanliness requirements.

Application Industries

Air‑compressor post‑treatment system, post‑desiccant‑dryer dust removal, electronics manufacturing, painting & coating, precision automation pneumatics, food packaging, laboratory air purification

Product Summary

With 0.01μm filtration rating, it fits V270‑size filter housing and works only in dry liquid‑free conditions.
