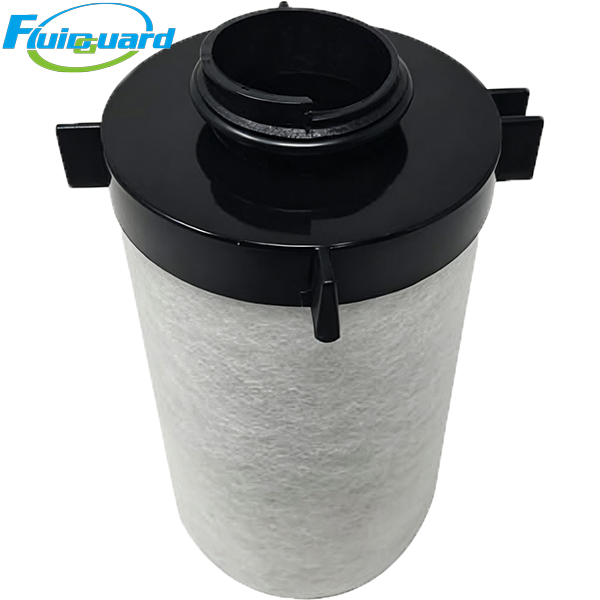

Coalescing Filters

Part No: CPNE00200

Filtration Accuracy: 0.01μm, Filtration Efficiency: 99.998%

Max Working Pressure: 16bar

Service Life: 5000‑8000h; replace when pressure drop reaches 0.35bar; standard service interval 8000 hours or 1 year

Filter Media: Imported borosilicate micro‑glass‑fiber gradient depth media with polyester hydrophobic drainage layer

Seal Material: NBR, screw‑locking connection, inner & outer 304 stainless‑steel support mesh

Main Features

Hydrophobic polyester drainage layer enables fast condensate drainage and reduces liquid re‑entrainment risk.

Gradient multi‑layer composite media with high dirt‑holding capacity, anti‑fiber shedding and stable pressure‑drop performance under high‑flow operating conditions.

CPNP00200 pre‑coalescing filter must be installed upstream to trap coarse contaminants and bulk liquid and protect NE‑grade fine media. CPNC00200 activated‑carbon element can be matched downstream for oil‑vapor and odor removal.

Delivers high‑purity compressed air for painting, electronics, food‑pharmacy and precision pneumatic applications.

Application Industries

Air‑compressor post‑treatment system, painting & coating, food & pharmacy, electronics manufacturing, laboratory air supply, precision automation pneumatics, chemical industry, packaging‑machine air supply

Product Summary

With 0.01μm high precision, it fits 200‑size filter housing and deeply removes ultra‑fine oil‑mist and fine solid contaminants to deliver clean compressed air with residual oil aerosol of 0.008ppm
