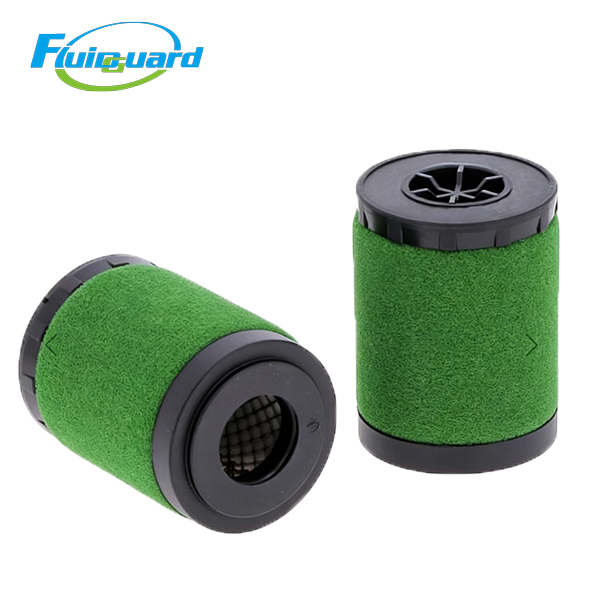

Coalescing Filters

Part No: 2258290004

Filter Media: Multi-layer borosilicate glass fiber composite material, featuring high coalescing efficiency and low fiber shedding

Filtration Performance & Core Parameters

Filtration Precision: Effectively captures fine solid particles, water droplets and liquid oil mist in compressed air

Core Function: Coalesces and removes liquid water, aerosol oil and fine particulate contaminants, providing clean compressed air for downstream equipment and processes

Standard Service Life: 4000 working hours under standard conditions

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 1℃ ~ 60℃ for stable continuous operation

Initial Pressure Drop: Ultra-low initial resistance to ensure smooth airflow and low power consumption

Replacement Alarm Differential Pressure: ≥0.06 MPa

Application Scenarios

Widely applied in industrial workshop air supply, pneumatic tool operation, mechanical processing, packaging industry, electronic manufacturing and general factory compressed air purification. Effectively eliminates water and oil contamination to ensure stable production quality.

Product Features

High-Efficiency Coalescing Structure: Professional gradient glass fiber layer achieves excellent liquid coalescing and separation effect, removing aerosol oil and tiny liquid droplets that ordinary filters cannot intercept

Large Dirt Holding Capacity: Optimized deep-pleated structure expands effective filtration area, improves pollutant storage capacity and extends service cycle

Stable Structural Performance: Reinforced inner and outer support skeleton with high-strength sealed end caps, resisting deformation and damage under long-term high airflow impact

Low Pressure Drop Design: Uniform porous structure maintains stable low resistance during the whole service life, reducing long-term system energy consumption

Reliable Sealing Performance: High-elastic aging-resistant sealing gasket ensures tight fit with filter housing, effectively preventing air bypass and ensuring full-flow filtration

Universal Quick Installation: Standard overall dimension and interface design support plug-and-play replacement, no special tools required for maintenance

Strict Quality Control: All products pass strict pressure drop and filtration efficiency testing before delivery to ensure consistent and reliable purification performance
