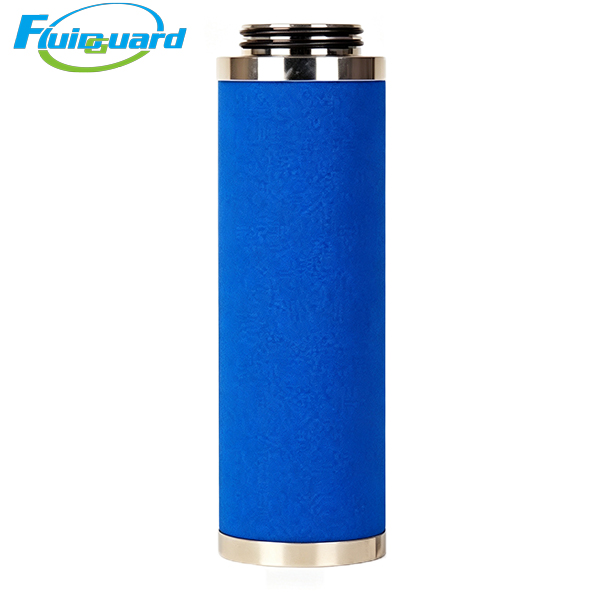

1C222140 Coalescing Filter

Model : 1C222140

Type : Coalescing Filters

Replacement for : 1C222140

With 1μm particle‑retention rating, it fits P‑EG / PG‑EG filter housing and serves as upstream pre‑protection filter for downstream coalescing elements.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

Part No: 1C222140

Oil Mist Performance: Not for oil‑mist removal, only for solid particles, rust and carbon powder

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +80℃

Dimension: Φ62×142mm

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar

Filter Media: Pleated borosilicate glass‑fiber particulate media with high dirt‑holding capacity

Main Features

High‑capacity pleated media with high dirt‑holding capacity, anti‑fiber shedding, stable pressure‑drop performance during long‑term operation.

Acts as first‑stage pre‑protection, protects downstream 1C221540 coalescing element from coarse‑particle damage and extends fine‑filter service life.

Stainless‑steel inner‑outer retainer mesh resists air‑flow impact and prevents media debris downstream.

Applied in multi‑stage compressed‑air filtration systems together with coalescing filters.

Application Industries

Air‑compressor pre‑filtration system, automation pneumatic equipment, upstream protection for painting lines, food packaging, general factory air supply, mechanical‑equipment air‑source purification

Product Summary

With 1μm particle‑retention rating, it fits P‑EG / PG‑EG filter housing and serves as upstream pre‑protection filter for downstream coalescing elements.
