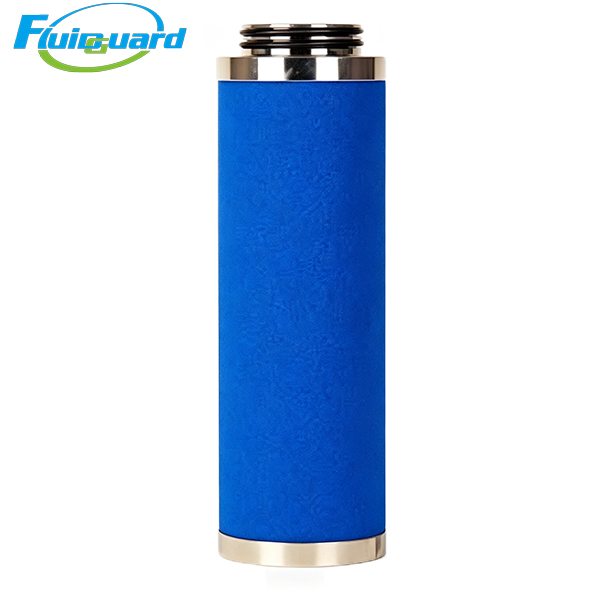

Coalescing Filters

Part No: 1C221540

Filtration Accuracy: 0.01μm, Filtration Efficiency: 99.998%

Residual Oil Aerosol: 0.01ppm

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +80℃

Dimension: Φ62×142mm

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar

Filter Media: Imported borosilicate composite glass fiber with hydrophobic drainage layer

Seal Material: NBR, UF push‑in connector, 304 stainless‑steel inner & outer support mesh

Main Features

P‑MF high‑efficiency coalescing element, deeply removes sub‑micron oil‑mist aerosol, liquid water and fine solid particulates, complies with ISO8573‑1 and ISO12500‑3 compressed‑air test standards.

Hydrophobic‑oleophobic depth‑type glass‑fiber media. Condensed condensate drains rapidly to prevent liquid re‑entrainment into downstream pipeline.

Composite gradient media with high dirt‑holding capacity, anti‑fiber shedding for stable long‑term continuous‑run performance.

Corresponding pre‑filter shall be installed upstream for protection to extend service life.

Deliver high‑clean air for painting, food‑pharmacy, electronics manufacturing, laboratory and precision pneumatic equipment with strict air‑quality requirements.

Application Industries

Air‑compressor post‑treatment system, painting & coating, food & pharmacy, electronics manufacturing, laboratory air supply, precision automation pneumatics, chemical industry, packaging‑machine air supply

Product Summary

With 0.01μm high precision, it fits P‑EG / PG‑EG filter housing and deeply removes ultra‑fine oil‑mist contaminants to deliver clean compressed air with residual oil of 0.01ppm. Direct replacement for original filter element
