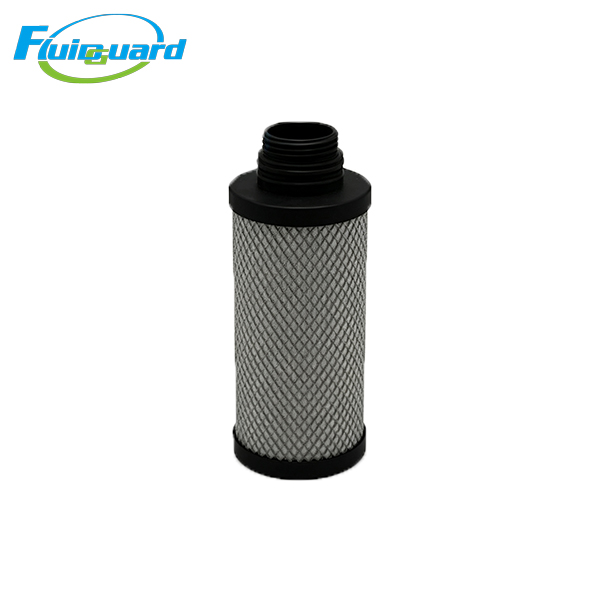

Coalescing Filters

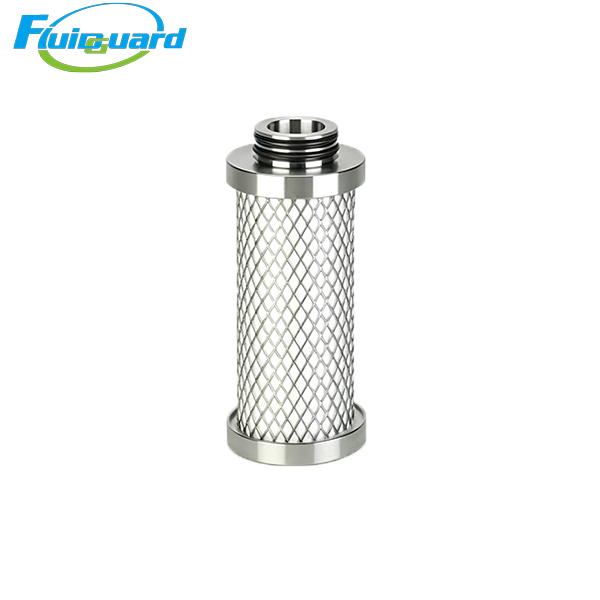

Part No: 1C031185

Filtration Accuracy: 0.01μm, Filtration Efficiency: 99.998%

Residual Oil Aerosol: 0.01ppm

Compatible Housing: Donaldson AG / SG / HD filter housings, size 05/25

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Dimension: Φ62×152mm

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar

Filter Media: Imported borosilicate micro‑glass fiber depth media with dedicated drainage layer

Main Features

Hydrophobic & oleophobic depth‑type glass‑fiber media. Condensed condensate drains rapidly to prevent liquid re‑entrainment into downstream pipeline.

Gradient deep‑pleated construction, high dirt‑holding capacity, anti‑fiber shedding for stable long‑term continuous‑run performance.

Machined aluminum end cap plus stainless‑steel retainer mesh, resistant to air‑flow impact and mechanical deformation for reliable sealing performance.

Application Industries

Air‑compressor post‑treatment system, painting & coating, food & pharmacy, electronics manufacturing, laboratory air supply, precision automation pneumatics, chemical industry, bottle‑blowing equipment

Product Summary

With 0.01μm high precision, it fits AG/SG/HD filter housing and deeply removes ultra‑fine oil‑mist contaminants to deliver clean compressed air with residual oil of 0.01ppm. Direct replacement for original filter element
