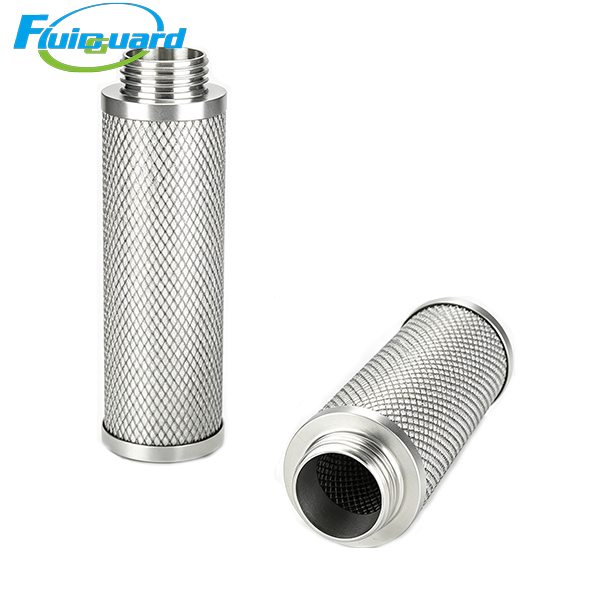

Coalescing Filters

Key Product Features

Multi-layer gradient borosilicate glass fiber coalescing media

Adopts imported hydrophobic & oleophobic micro-glass fiber composite structure with built-in outer drainage foam layer. It thoroughly captures suspended water mist and trace atomized oil aerosol after primary coarse filtration. Ultra-high oil holding capacity effectively reduces contamination load of terminal carbon filter elements.

All anti-corrosion fully sealed cylindrical cartridge

304 stainless steel inner support tube + perforated outer protective mesh; reinforced PA66 glass-filled plastic integrated end caps with one-piece NBR nitrile sealing gasket. No air bypass leakage after installation, excellent resistance to compressor lubricant, condensed water and weak industrial chemical corrosion.

Low pressure drop energy-saving deep pleat design

Uniform dense deep folding maximizes effective filtration area, maintaining ultra-low initial differential pressure during long-term continuous operation. Optimized radial inside-out airflow eliminates turbulence and slow pressure accumulation, lowering air compressor power consumption and factory operating costs.

Application Industries

Semiconductor wafer production, precision electronic assembly, optical lens processing

Pharmaceutical sterile workshops, food aseptic filling production lines

High-gloss automotive precision spraying, aerospace parts surface treatment

Laboratory high-purity gas supply, medical & dental pneumatic equipment, high-precision laser cutting

Brief Overview

Premium multi-layer hydrophobic micro glass fiber media achieves ultra-low residual oil output, serving as the core precision purification stage for medium-flow industrial air treatment equipment. Stable performance under 1–66°C and maximum 16 bar pressure, widely used for production environments requiring ultra-clean compressed air.
