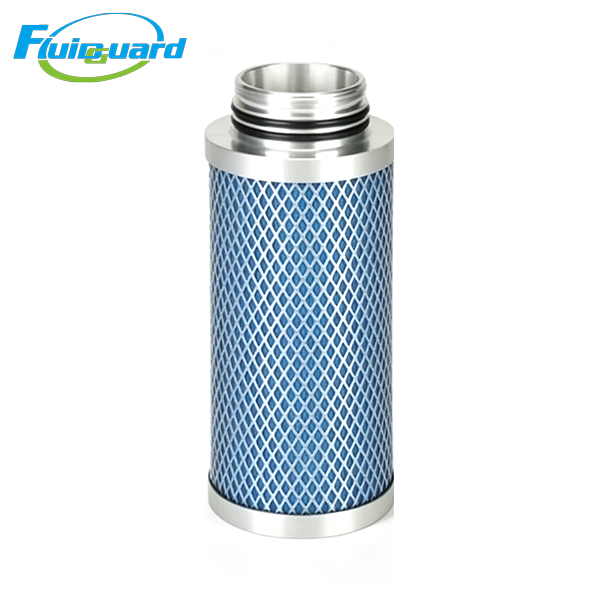

Coalescing Filters

Part No: SMF05/25

Filtration Accuracy: 0.01μm, Filtration Efficiency: 99.999%

Residual Oil Aerosol: 0.01ppm

Compatible Housing: Ultrafilter UF05/25 series filter housing

Max Working Pressure: 16bar

Working Temperature: ‑10℃ ~ +65℃

Dimension: Φ62×128mm

Service Life: 5000‑8000h, replace when pressure drop reaches 0.35bar

Filter Media: Imported borosilicate composite glass fiber with outer hydrophobic foam drainage layer

Main Features

SMF‑grade high‑efficiency coalescing element, deeply removes sub‑micron oil‑mist aerosol, liquid water and fine solid particulates, complies with ISO8573‑1 and ISO12500‑3 test standards.

Oil‑repellent & water‑repellent glass‑fiber media with outer foam drainage sleeve. Condensed oil‑water liquid drains rapidly to prevent liquid re‑entrainment into air flow.

Gradient multi‑layer pleated media with high dirt‑holding capacity, anti‑fiber shedding for stable long‑term continuous operation.

Heavy‑duty stainless‑steel inner core against air‑flow impact.

Application Industries

Air‑compressor post‑treatment system, painting & coating, food & pharmacy, electronics manufacturing, laboratory air supply, precision automation pneumatics, chemical industry, shipbuilding

Product Summary

With 0.01μm high precision, it fits UF05/25 filter housing and deeply removes ultra‑fine oil‑mist contaminants to deliver clean compressed air with residual oil of 0.01ppm. Suitable for industrial applications with strict oil‑content requirements, direct replacement for original filter element
