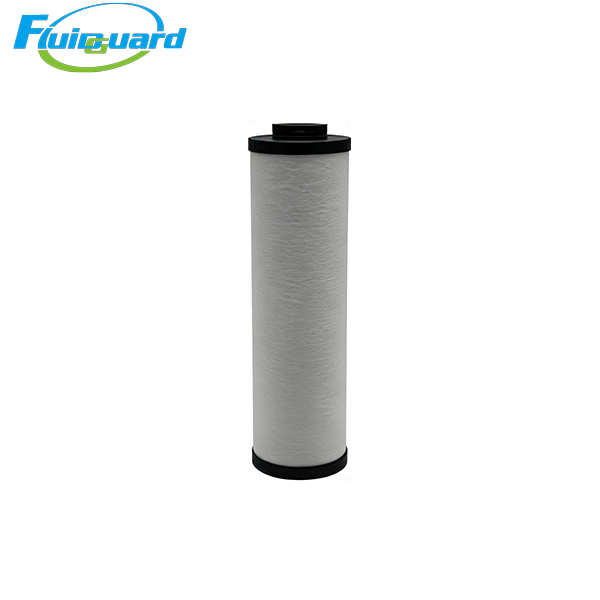

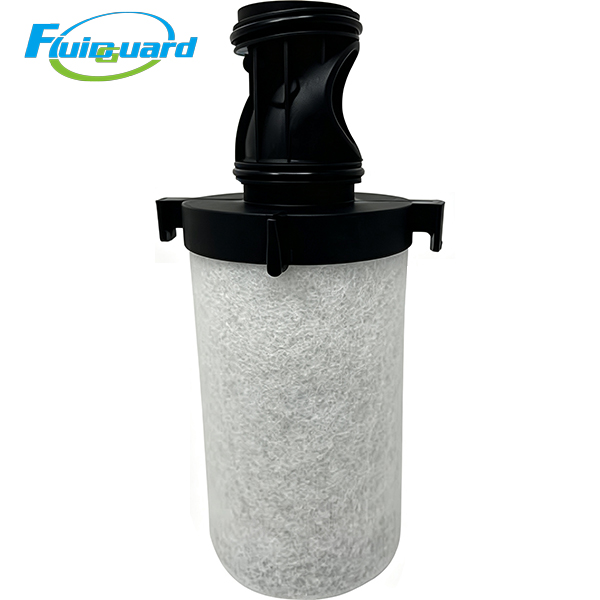

Coalescing Filters

Key Product Features

Multi-layer composite adsorption media

Front 0.01μm hydrophobic micro glass fiber coalescing layer traps residual micro oil mist; high-density coal-based activated carbon bed thoroughly adsorbs gaseous oil vapor, hydrocarbon compounds and peculiar odors that cannot be eliminated by coalescing filters. Internal carbon dust isolation foam prevents activated carbon powder from entering downstream pipelines. Fully compliant with ISO 8573-1 Class 0 high-purity compressed air standard.

Double 304 stainless steel reinforced sealed structure

Inner and outer perforated stainless steel support cages lock composite media tightly, resisting long-term high-flow airflow vibration and medium deformation.

Low pressure drop energy-saving design

Optimized layered internal flow channels maximize effective airflow area to maintain low initial pressure loss, reducing continuous power consumption of large air compressors and cutting overall factory operation costs. High-capacity activated carbon extends adsorption cycle and lowers replacement frequency.

Application Industries

Large automobile full-process spraying production lines, central factory air supply stations

Semiconductor manufacturing, precision electronic assembly, optical lens processing

Pharmaceutical sterile workshops, food & beverage food-grade production lines

Laboratory ultra-clean gas supply, medical equipment air source, laser cutting equipment

Brief Overview

It combines micro glass fiber pre-filtration and high-performance activated carbon adsorption to remove oil vapor and odors thoroughly. Operating stably under 1–80°C and 16 bar maximum pressure, it serves as the final purification barrier to provide oil-vapor-free ultra-clean compressed air for high-standard industrial production.
