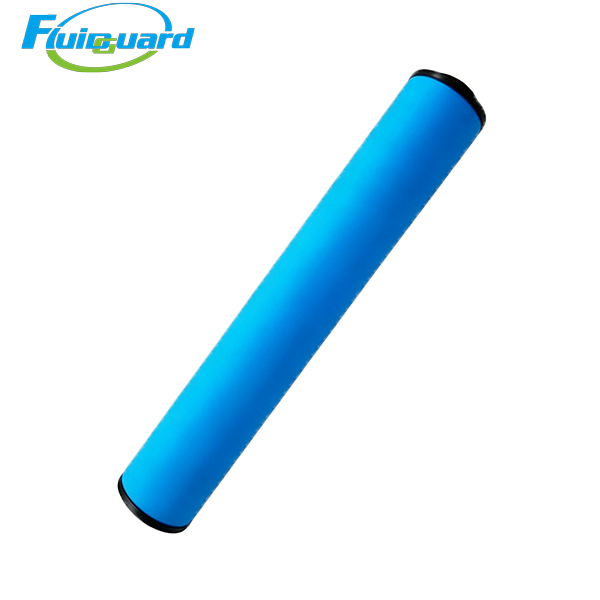

Coalescing Filters

Model: 1629026310

Core Technical Specifications

Filtration Precision: 1 μm solid particles, condensed water & bulk oil droplets

Residual Oil Aerosol Content: ≤0.5 ppm under rated flow

Filter Media: Multi-layer gradient borosilicate micro glass fiber composite

Max Working Pressure: 16 bar / 232 PSI

Max Working Temperature: ≤80℃

Service Life: 4000 working hours or 12 months

Structure: Small plug-in compact cylindrical cartridge with metal end caps

Key Product Features

Front-stage protective filtration

Captures pipeline rust, scale, solid dust, condensed water and large oil mist droplets, fully protects downstream PD high-efficiency filter and QD activated carbon filter to extend their service life.

Ultra-low differential pressure drop design

Compact pleated gradient media provides sufficient effective filtration area, maintains stable low airflow resistance during continuous operation and reduces air compressor energy consumption.

Hydrophobic & oleophobic surface coating

Accelerates separation and drainage of liquid oil and water, avoids early filter clogging and improves dirt & liquid holding capacity.

Reinforced stainless steel inner support cage

Prevents filter layer collapse and deformation under long-term stable operating conditions.

Application & Industries

Suitable for small pneumatic equipment, laboratory instruments, precision testing equipment, small spray booths, food packaging and electronic workshop air source purification.
