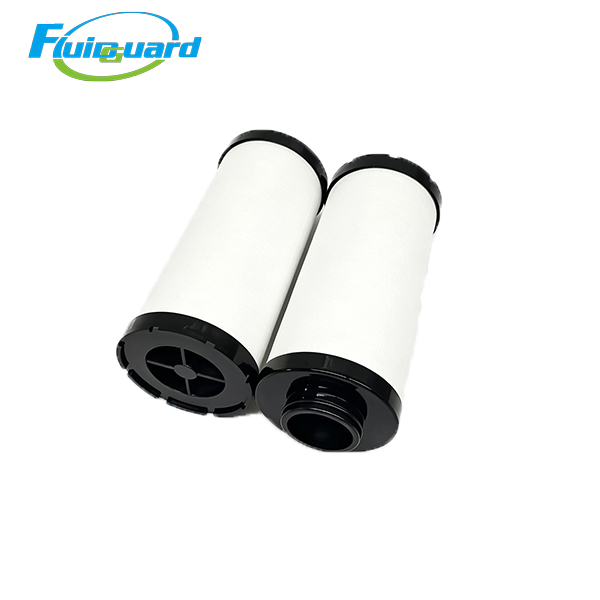

Coalescing Filters

Model: 10CU25-130

Core Technical Specifications

Filtration Grade: CU General Industrial Coalescing Grade

Filtration Precision: Intercept solid particles ≥1μm, liquid oil mist & condensed water aerosol

Outlet Residual Oil Content: ≤1 ppm

Filtration Efficiency: 99.99% removal rate for 1μm solid & liquid contaminants

Filter Media: Multi-layer gradient hydrophobic borosilicate glass fiber composite, anti-static, oleophobic

Exact Dimensions

Total Length: 330 mm

Outer Diameter:80 mm

Inner Diameter: 53.6 mm

Standard Service Life: 4,000 operating hours; mandatory replacement once differential pressure exceeds 0.08 MPa

Initial Differential Pressure: ≤0.015 MPa

Key Product Advantages

Integrated solid-liquid separation for general industrial air purification

Multi-density graded glass fiber simultaneously traps pipeline dust, submicron oil aerosol and condensed water droplets. Captured liquid aggregates and drips to the housing drain port, effectively improving compressed air cleanliness for general pneumatic equipment.

Low initial pressure drop to reduce energy consumption

Large deep-pleated filtration area optimizes internal airflow channels. Pressure loss remains stable under 24/7 full-load continuous operation, lowering long-term compressor power cost.

Large liquid & dust storage capacity extends maintenance cycles

Thick hydrophobic fiber matrix holds massive oil, water and solid pollutants, resists rapid clogging in medium-dust & medium-humidity workshop environments, reducing replacement frequency.

Reinforced anti-corrosion sturdy structure

Stainless steel protective mesh and elastic polyurethane end caps resist vibration, temperature fluctuation and oil corrosion. Avoid media deformation, fiber shedding and secondary pipeline contamination.

Working Principle

Polluted compressed air after primary particulate filtration flows from outside to inside through multi-layer hydrophobic glass fiber media. Solid particles above 1μm are trapped; micro oil & water aerosols collide and agglomerate into large liquid droplets, then flow down to the filter housing drain port by gravity. Purified dry compressed air is supplied to machining, textile, packaging and ordinary spraying equipment.

Application Industries

widely used in:

General mechanical processing workshops, textile factories, packaging printing plants, small food processing lines, centralized factory compressed air stations, construction machinery air supply systems.
