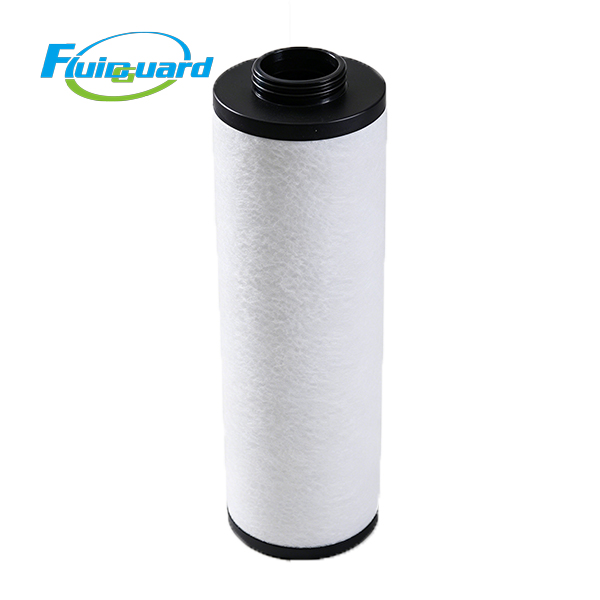

Coalescing Filters

Model: 23509128

Core Technical Specifications

Filtration Grade: Primary Particulate Pre-Filter Grade P

Filtration Precision: Intercept solid particles ≥1 μm, pipeline rust, scale, metal shavings, workshop dry dust

Particle Filtration Efficiency: 99.99% removal efficiency for 1μm solid contaminants

Filter Media: Multi-layer gradient composite depth fiber, high dust storage capacity, anti-static treatment

Max Working Pressure: 16 bar (232 PSIG / 1.6 MPa)

Continuous Operating Temperature: 1.5℃ ~ 66℃

Standard Service Life: 4,000 operating hours; mandatory replacement once differential pressure exceeds 0.08 MPa

Initial Differential Pressure: ≤0.012 MPa

Sealing Structure: Double fluorine rubber O-ring bidirectional full sealing, zero compressed air bypass leakage

Key Product Advantages

Heavy-duty pre-filtration to protect rear-stage filter elements

Thick multi-layer depth fiber traps most coarse solid pollutants in advance, greatly reduces dust load of M coalescing filter and C activated carbon filter, extends service life of expensive post-stage filter cartridges and lowers overall maintenance cost.

Ultra-low initial pressure drop for energy saving

Uniform deep-pleated large filtration area optimizes internal airflow channels. Pressure loss remains stable during 24/7 full-load continuous operation, effectively cutting compressor power consumption and operation expenses.

Extra-large dust holding capacity to extend maintenance intervals

High-capacity gradient fiber matrix stores massive solid particulate pollutants, resists rapid clogging in dusty factory environments and prolongs filter replacement cycles.

Reinforced anti-corrosion stable construction

Acid-resistant PP support cage and fluorine rubber sealing rings adapt to long-term compressed air mixed with trace oil mist and condensed water. Avoid media deformation, fiber shedding and secondary air pollution.

Working Principle

Contaminated compressed air carrying dry dust, rust chips and coarse solid impurities flows from outside to inside through multi-layer composite fiber media. All solid particles above 1μm are fully trapped and stored inside the thick fiber matrix. Pre-cleaned compressed air flows into the next coalescing filter for oil & water removal before being delivered to precision production equipment.

Application Industries

widely used in:

Automotive electrostatic spraying, laser cutting equipment, pharmaceutical cleanrooms, food sterile packaging, electronic component assembly, machining workshops, textile mills, centralized factory compressed air stations, mining & construction machinery air supply systems.
