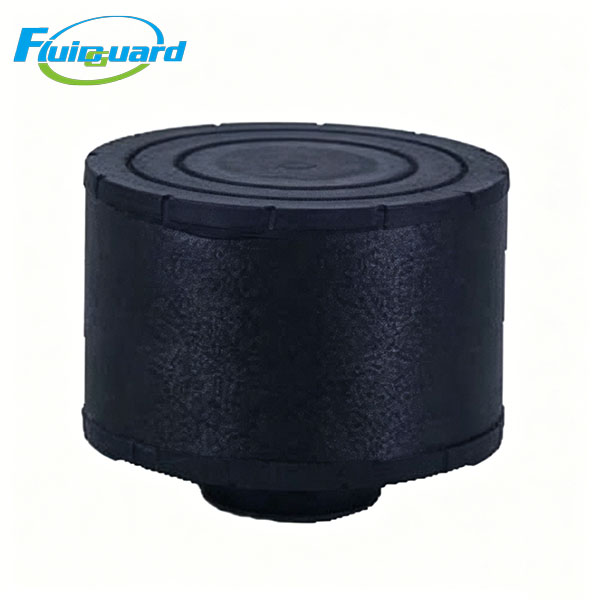

AH1140 Air Filter

Model : AH1140

Type : Air Filters

Replacement for : AH1140

Height : 187 mm

It combines a rugged plastic housing with a high‑efficiency filter element to remove dust, sand and debris from intake air.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

Model: AH1140

Type: Disposable Air Filter Housing / Air Cleaner Assembly

Specifications

Outer Diameter: 267 mm

Inner Diameter : 100 mm

Height: 187 mm

Filter Media: High‑efficiency HV cellulose / glass fiber composite

Filtration Precision: 5–10 μm

Filtration Efficiency: ≥99.5%

Service Life: 2000–4000 hours

Weight: 1.44–1.81 kg

Structure: Integral plastic housing, built‑in filter element, rubber seal

Features

Heavy‑Duty Protection: 99.5%+ efficiency for dusty construction, mining & farm environments.

Compact & Rugged: Tough plastic housing resists vibration, moisture & dirt ingress.

Long Service Life: High dirt‑holding capacity reduces maintenance frequency.

Description

It combines a rugged plastic housing with a high‑efficiency filter element to remove dust, sand and debris from intake air.
