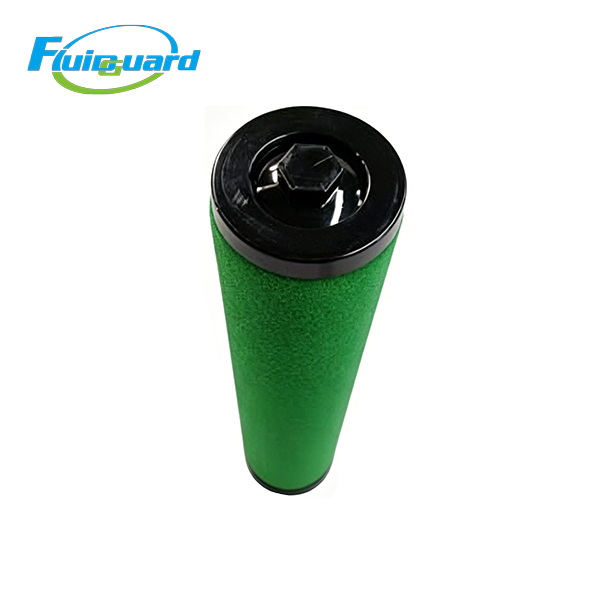

Model : 9.4888.0
Type : Air Filters
Replacement for : 9.4888.0
It thoroughly removes trace oil vapor and irritating odor that physical coalescing filtration cannot capture, controlling total residual oil content down to ≤0.003 ppm, fully meeting high-standard sterile, food-contact and high-gloss spraying production requirements.It effectively avoids paint film
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Part No: 9.4888.0
Filtration Performance: Captures solid particles ≥0.01 μm, residual oil vapor ≤0.003 ppm
Standard Service Life: 4000 working hours; shorten to 2000h under heavy oil mist & high humidity
Max Working Pressure: 1.6 MPa
Operating Temperature Range: 1.5℃ ~ 45℃
Initial Pressure Drop: ≤0.01 MPa
Replacement Alarm Differential Pressure: ≥0.06 MPa
Gross Weight: 0.91 kg
Application Scenarios
Pharmaceutical sterile production air supply, food & beverage packaging, breathing air system, automotive high-gloss topcoat spraying, electronic cleanroom manufacturing, laboratory precision analytical instruments, high-end printing & textile dyeing
Product Features
Two-stage adsorption structure: Front glass fiber layer traps residual liquid oil mist & fine dust; rear high-capacity activated carbon deeply adsorb oil vapor and odor, achieving ISO 8573-1 Class 0 odor-free ultra-clean compressed air.
Large specific surface area activated carbon with strong adsorption capacity, solves the defect that ordinary coalescing filters cannot remove gaseous oil contaminants.
Low-resistance deep-pleated media design, stable low pressure drop throughout service cycle, effectively reduce long-term air supply power consumption.
Corrosion-resistant metal inner & outer support screens, epoxy sealed composite end caps, excellent anti-vibration performance; filter media will not deform under long-term continuous large airflow impact.
Standard top plug-in quick-install structure, tool-free replacement to cut maintenance downtime; integrated EPDM rubber sealing ring resists aging & temperature fluctuation to eliminate pipeline air leakage.
Product Description
It thoroughly removes trace oil vapor and irritating odor that physical coalescing filtration cannot capture, controlling total residual oil content down to ≤0.003 ppm, fully meeting high-standard sterile, food-contact and high-gloss spraying production requirements.
It effectively avoids paint film pinholes, product surface yellowing, precision instrument corrosion and finished product odor pollution caused by oil vapor contamination.
