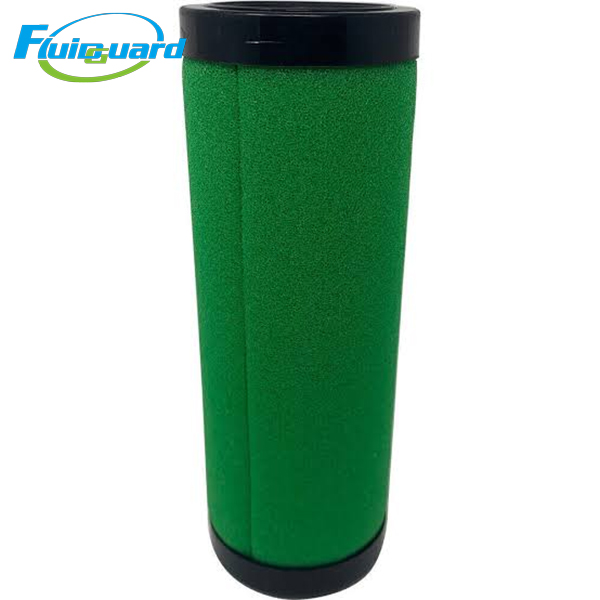

Air Filters

Part No: 9.4887.0

Filtration Precision: Intercept solid particles ≥0.01 μm, residual oil vapor ≤0.003 ppm

Standard Service Life: 4000 working hours; shorten to 2000h under heavy oil mist & high humidity

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 49℃

Initial Pressure Drop: ≤0.01 MPa

Replacement Alarm Differential Pressure: ≥0.05 MPa

Gross Weight: 0.46 kg

Application Scenarios

Pharmaceutical sterile production air supply, food & beverage packaging, breathing air system, automotive high-gloss topcoat spraying, electronic cleanroom manufacturing, laboratory precision analytical instruments, high-end printing & textile dyeing

Product Features

Dual-stage composite structure: Front glass fiber layer traps residual liquid oil mist & fine dust; rear high-capacity activated carbon deeply adsorb oil vapor and peculiar odor, realizing odor-free ultra-clean compressed air reaching breathing grade.

Large-capacity columnar activated carbon with strong adsorption capacity, solves the limitation that ordinary coalescing filters cannot remove gaseous oil contaminants.

Deep-pleated low-resistance cartridge design, stable low pressure drop throughout service life, effectively reduce long-term air supply power consumption.

Epoxy sealed composite end caps & anti-corrosion plastic support frame, excellent anti-vibration performance; filter media will not deform under long-term continuous large airflow impact.

Product Description

It thoroughly removes trace oil vapor and irritating odor that physical coalescing filtration cannot capture, controlling total residual oil content down to ≤0.003 ppm, fully meeting high-standard sterile, food-contact and high-gloss spraying production requirements.

It effectively avoids paint film pinholes, product surface yellowing, precision instrument corrosion and finished product odor pollution caused by oil vapor contamination.
