Model : 3211130520
Type : Air Filters
Replacement for : 3211130520
Height : 660 mm

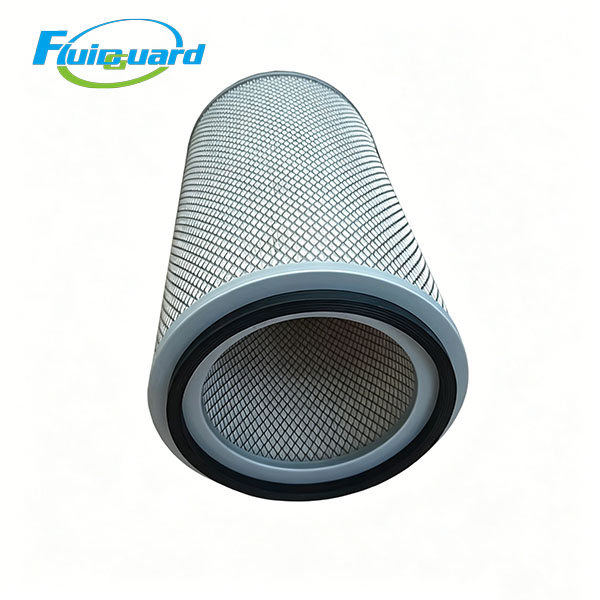

3211130520 is a high‑capacity intake air filter for 185kW industrial screw air compressors. It removes airborne dust and contaminants to protect compressor rotors, bearings, and internal components, ensuring reliable performance in harsh industrial environments.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model: 3211130520
Type: Air Compressor Intake Air Filter
Specifications
Filter Media: High‑efficiency pleated cellulose / polyester blend
Filtration Precision: ≤5 μm
Efficiency: 99.9%
Dimensions:
Outer Diameter: 320 mm
Inner Diameter: 213 mm
Height: 660 mm
Weight: 8.5 kg
Max Temperature: -20℃ ~ +85℃
Service Life: 4,000 hours
Features
High Dust Holding Capacity: Large filter area for extended service intervals
Optimized Media: 99.9% efficiency captures fine dust down to 5 μm
Heavy‑Duty Construction: Metal end caps + galvanized inner/outer mesh
Low Airflow Resistance: Ensures stable intake pressure energy efficiency
Description
3211130520 is a high‑capacity intake air filter for 185kW industrial screw air compressors. It removes airborne dust and contaminants to protect compressor rotors, bearings, and internal components, ensuring reliable performance in harsh industrial environments.
