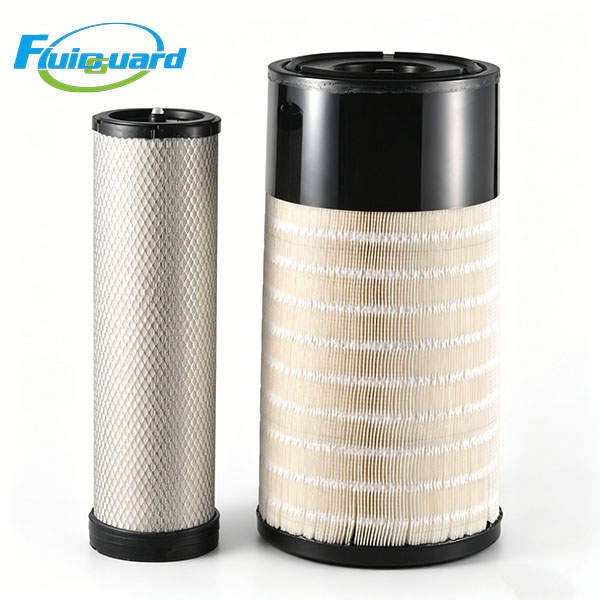

Model : DS3203
Type : Air Filters
Replacement for : DS3203
It filters incoming air to protect compressor rotors, bearings, and internal components from dust and debris, ensuring stable operation and extending equipment life. Widely used in manufacturing, construction, and general industrial compressed air systems.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model: DS3203
Type: Air Compressor Intake Air Filter Element
Specifications
Filter Media: High‑efficiency pleated cellulose / fiberglass
Filtration Precision: ≤5 μm
Efficiency: 99.0%
Dimensions:
Outer Diameter: 164 mm
Inner Diameter: 128 mm
Height: 238 mm / 223 mm
Weight: 1.97 kg
Max Temperature: -20℃ ~ +85℃
Service Life: 3,000 hours
Features
High Efficiency Media: 99.0% efficiency captures fine dust down to 5 μm
Sturdy Construction: Metal end caps + polyurethane seal for vibration resistance
Long Service Life: High dust‑holding capacity extends maintenance intervals
Wide Application: Suitable for multiple industrial air compressor systems
Description
It filters incoming air to protect compressor rotors, bearings, and internal components from dust and debris, ensuring stable operation and extending equipment life. Widely used in manufacturing, construction, and general industrial compressed air systems.
