Air Filters

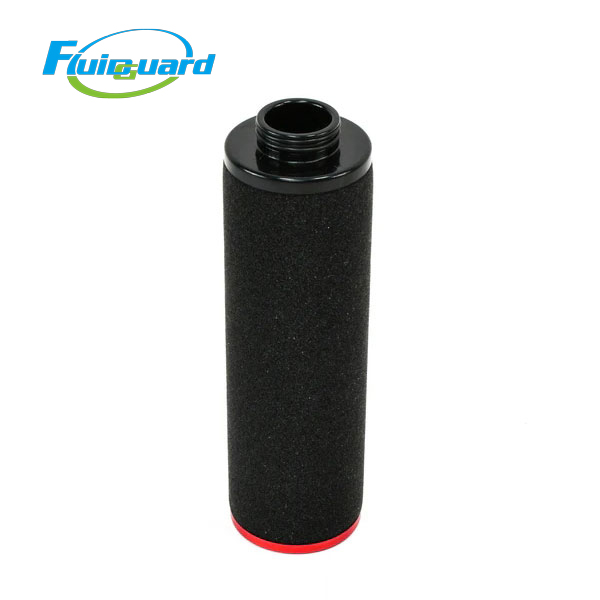

Part Number: 2901207203

Filtration & Adsorption Performance:

Solid particles capture ≥0.01 μm

Residual hydrocarbon oil vapor ≤0.003 ppm

Standard Service Life: 4,000 working hours; shorten to 2,000 hours under heavy oil mist, high humidity & continuous spray booth environments

Max Operating Pressure: 1.6 MPa

Safe Continuous Operating Temperature: 2℃ ~ 45℃

Replacement Alarm Differential Pressure: ≥0.06 MPa

Application Scenarios

Large automotive OEM full vehicle painting lines, semiconductor & large electronic cleanroom mass production, large-scale pharmaceutical sterile workshop process air supply, food & beverage aseptic filling production lines, lithium battery large factory manufacturing, optical mass polishing workshops, central laboratory high-precision analytical instrument air supply

Product Features

Dual-layer composite filtration design: Front microglass layer blocks residual liquid oil mist and fine dust to protect carbon filler; high-specific-surface-area activated carbon deeply adsorbs trace oil vapor and organic odors, achieving zero-odor ultra-pure compressed air compliant with food, medical and electronic industry strict standards.

Large-diameter deep-pleated low-resistance media layout maintains stable low pressure drop through full service cycle, avoiding excessive energy consumption of large-flow air compressors.

Epoxy fully sealed composite end caps + thick corrosion-resistant plastic inner support cage, excellent anti-vibration performance; carbon filling and filter media will not shift or collapse under long-term large-volume steady airflow impact.

Integrated double EPDM rubber top O-ring sealing structure, resistant to high temperature, synthetic compressor lubricant oil and aging, completely eliminate pipeline air leakage risks.

Product Description

Coalescing filters can only separate liquid oil aerosols, while this QD carbon element targets gaseous oil vapor and irritating odors penetrating liquid filtration stages. It effectively prevents paint film pinholes, workpiece surface yellowing, precision instrument corrosion and finished product odor contamination, fully satisfying strict sterile, food-contact and high-gloss coating mass production requirements. It also reduces carbon load and extends service life of the terminal adsorption stage.
