Air Filters

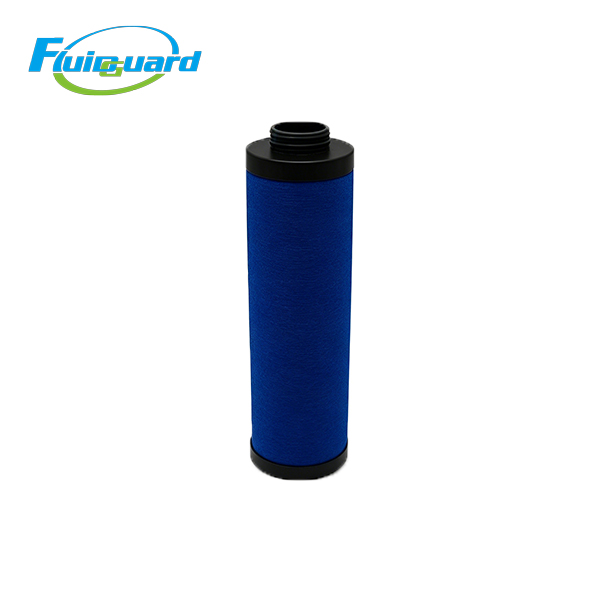

Part No: 2901053200

Filtration Precision: Captures solid particles ≥1 μm, residual liquid oil mist ≤1 ppm

Core Functions: Remove rust scale, sand dust, bulk condensed liquid water and large oil droplets as front-stage protection

Standard Service Life: 5000 working hours

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 65℃

Initial Pressure Drop: ≤0.008 MPa

Replacement Alarm Differential Pressure: ≥0.05 MPa

Application Scenarios

Front-stage pretreatment for multi-stage compressed air purification systems, general workshop pneumatic tools, heavy dust machining workshops, pre-protection for refrigerated air dryers, extend service life of downstream PD high-efficiency coalescing & QD activated carbon fine filters

Product Features

Hydrophobic outer foam sleeve prevents separated liquid water & oil from re-entering airflow, greatly improve liquid separation efficiency; high dirt-holding gradient glass fiber media intercept most coarse contaminants to reduce load of downstream precision filters.

Ultra-low initial pressure drop deep-pleated design, minimize long-term system energy consumption and electricity cost.

Epoxy sealed composite end caps & stainless steel inner support core, anti-corrosion, shock-resistant; filter media will not collapse under long-term heavy-dust airflow impact.

Product Description

It removes large-particle rust, sand dust, bulk condensed water and coarse oil droplets from raw compressed air, effectively prolong the service life of secondary high-efficiency coalescing & activated carbon filters, lower overall maintenance frequency and cost of the whole air system.
