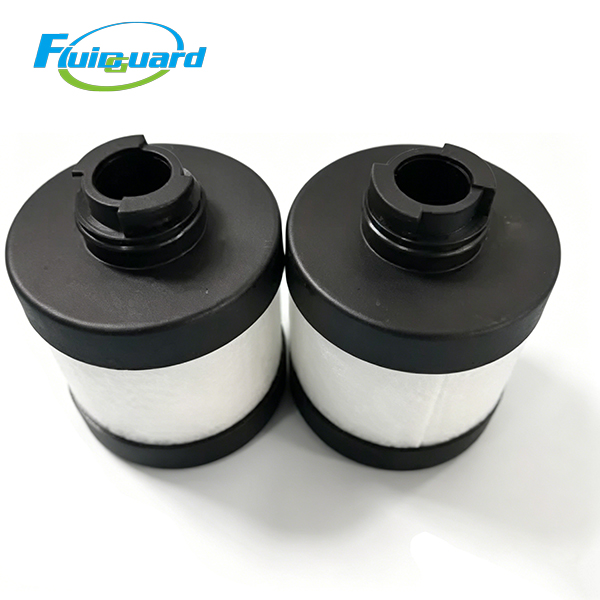

Air Filters

Part No: 2258290105

Filtration Performance: Solid particles ≥0.01 μm intercepted, residual oil vapor ≤0.003 ppm

Core Function: Eliminate hydrocarbon oil vapor, organic peculiar smell, volatile oil gas after coalescing filtration

Standard Service Life: 4000 working hours; shorten to 2000h under heavy oil mist conditions

Max Working Pressure: 1.6 MPa

Initial Pressure Drop: ≤0.01 MPa

Replacement Alarm Differential Pressure: ≥0.05 MPa

Gross Weight: 0.11 kg

Application Scenarios

Pharmaceutical sterile production air supply, food & beverage packaging, breathing air system, automotive topcoat painting, electronic cleanroom manufacturing, laboratory precision analytical instruments, high-end printing industry

Product Features

Dual-stage composite structure: Front glass fiber layer intercepts residual liquid oil mist and fine dust; rear high-purity activated carbon deeply adsorb invisible oil vapor and odor, realize odor-free & ultra-oil-free compressed air.

Large-capacity columnar activated carbon with strong adsorption capacity, solves the problem that ordinary coalescing filters cannot remove oil vapor.

Deep-pleated low-resistance design, low initial pressure drop, effectively reduce long-term air supply power consumption.

Reinforced composite end caps & anti-corrosion plastic support frame, anti-vibration, media will not deform under long-term continuous airflow impact.

Product Description

It completely removes residual oil vapor and peculiar odor that cannot be trapped by physical coalescing filters, controlling total residual oil content down to ≤0.003 ppm, reaching breathing-grade ultra-clean compressed air standard.

It avoids paint film pinholes, product surface yellowing, instrument corrosion and odor pollution caused by oil vapor, specially suitable for high-standard sterile, food-grade and high-gloss spraying production lines.
