Air Filters

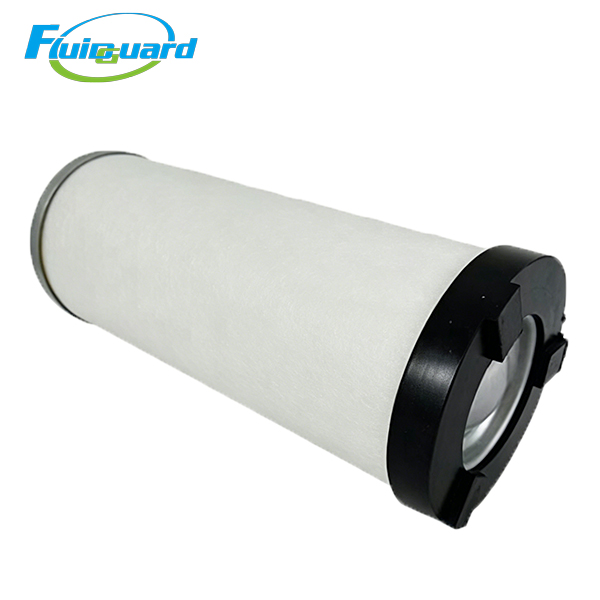

Model: 52323020

Core Technical Specifications

Filter Media: Imported multi-layer gradient borosilicate micro glass fiber composite

Filtration Precision: 0.1 μm submicron oil mist aerosol

Separation Efficiency: ≥99.999%

Residual Oil Content of Outlet Air: ≤3 ppm

Max Working Pressure: 1.3 MPa / 13 bar

Max Working Temperature: ≤110℃

Initial Differential Pressure: ≤0.02 MPa

Service Life: 3500–6000 working hours or 12 months

Key Product Features

High-efficiency coalescing oil-gas separation

Gradient microglass fiber medium captures tiny submicron oil mist particles, aggregates aerosol into large liquid oil droplets, which flow back to lubricating tank via built-in oil return tube, effectively reduce compressor oil consumption and avoid oil carryover in compressed air.

Low pressure drop energy-saving design

Large pleated filtration area ensures smooth airflow, maintains stable low differential pressure during long-term continuous operation, cuts down air compressor power loss and operation cost.

Ultra-high oil & dirt holding capacity

Multi-layer deep filter structure stores massive separated lubricant, extends maintenance interval and lowers filter replacement frequency.

Full stainless steel perforated inner support cage

Prevents filter layer collapse, deformation and damage under long-term high-temperature, high-flow industrial operating conditions.

Working Principle

Oil-gas mixture discharged from compressor airend enters separator tank. Large oil droplets are separated by gravity at first; residual micro oil mist penetrates the glass fiber coalescing media and is fully trapped, then condensed into liquid oil to flow back to lubrication system. Clean low-oil compressed air flows out for post-processing purification.

Application & Industries

Widely applied in machinery manufacturing, metal processing, packaging, textile, general spray coating, food & beverage, pneumatic tools and workshop centralized air supply systems.
