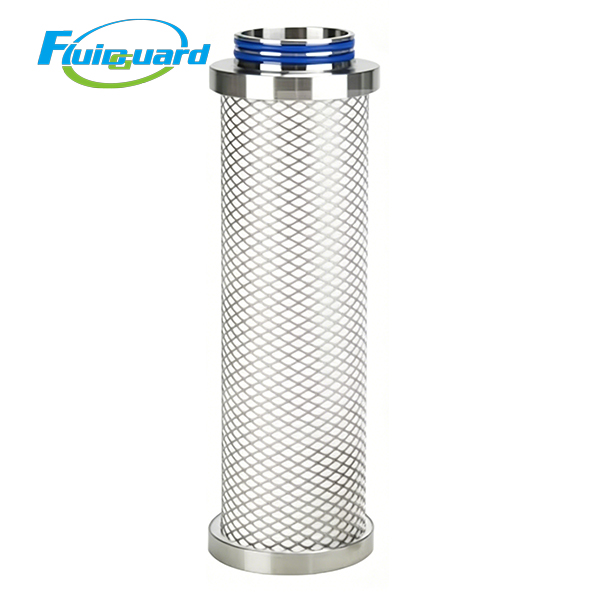

Air Filters

Part Number: 1C224317

Microbe Removal Performance: LRV ≥7 for particles ≥0.01 μm, full bacteria & virus interception

Core Function: Terminal sterile filtration stage for compressed air / process technical gas; eliminate bacteria, spores, fine solid particles, trace liquid droplets after coalescing filter; deliver sanitary sterile air for food, beverage, pharmaceutical and medical production lines

Standard Service Life: 4,000 working hours

Max Operating Pressure: 1.6 MPa

Continuous Operating Temperature: 2℃ ~ 130℃

Replacement Alarm Differential Pressure: ≥0.07 MPa

Mechanical Dimensions:

Outer Diameter: 42 mm

Total Length: 254 mm

Application Scenarios

Food & beverage aseptic filling lines, pharmaceutical sterile workshop process air, medical device manufacturing, laboratory cell culture clean gas supply, cosmetic sterile production, breathing air purification, electronic semiconductor ultra-clean gas delivery

Product Features

Binder-free multi-layer borosilicate microglass + PTFE sterile membrane dual-layer structure achieves LRV7 microbial interception, completely blocks bacteria, spores and fine solid contaminants; stainless steel cage supports high-temperature sterilization without media deformation.

High void-volume depth media design maintains low stable pressure drop during long-term continuous operation, reducing extra power consumption of oil-free compressors.

Standard push-in UF bottom central connection for tool-free quick replacement, greatly shortening sterile line shutdown maintenance time

Product Description

Conventional coalescing and carbon filters can only remove oil mist, water and VOCs, but cannot intercept microorganisms. This sterile 0.2μm absolute filter provides critical sanitary protection, eliminating microbial contamination risks to finished products and production equipment, mandatory for aseptic food, medical and pharmaceutical process air systems.
