Other Filters

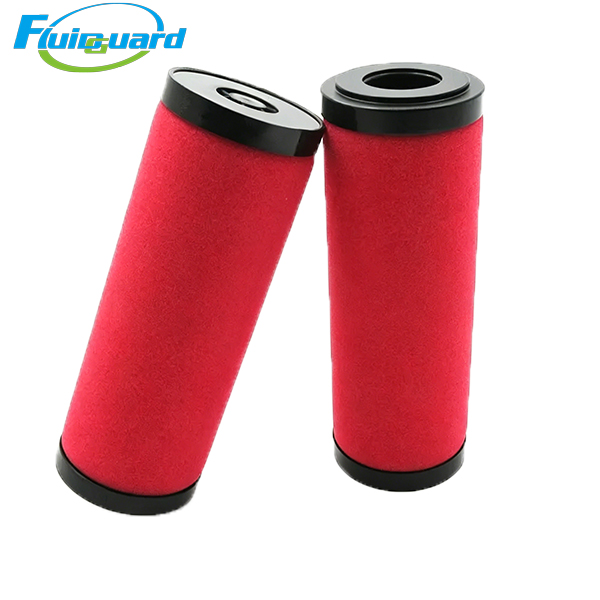

Model No: 75140P

Filter Media: Gradient Composite Microfiber

Filtration Precision: 1μm

Max Working Pressure: 1.0 MPa

Max Working Temperature: ≤48.9℃

Standard Service Life: 3500–4000 working hours

Application Scope

widely applied in Automobile manufacturing spraying lines, heavy machinery processing, mining air supply systems

Food packaging factories, textile mills, chemical plants, centralized industrial compressor stations

Electronic assembly workshops, general pneumatic equipment supporting air supply

Product Features

1μm general particulate grade, efficiently blocks solid dust, rust and bulk liquid water, reducing system impurity load significantly.

Large dirt holding capacity with uniform deep pleated layout, extending replacement cycle of post-stage high-precision filter elements.

Thickened perforated stainless steel inner support frame, high structural rigidity, anti-collapse under working pressure 0.7–1.0MPa.

Oil & temperature resistant composite filter media, no fiber shedding to prevent secondary contamination of compressed air.

Streamlined internal channel design keeps ultra-low initial pressure drop, lowering overall energy consumption of air compressor station.

Integrated elastic sealing end caps fit tightly with filter housing to eliminate bypass air leakage.

Simple disassembly and replacement, cutting daily maintenance cost of the entire air purification system.
