Model : DREBE6X-1X
Cross Reference:175MG24K31F1M
Type : Other Compressor Valves
Replacement for : Rexroth

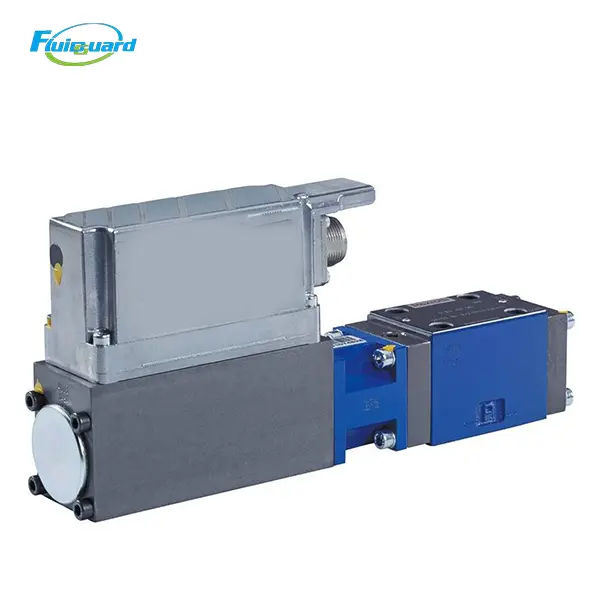

The DREBE6X-1X is a pilot-operated proportional pressure reducing valve manufactured .
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
The DREBE6X-1X is a pilot-operated proportional pressure reducing valve manufactured . It is designed to precisely control and reduce system pressure for a hydraulic consumer based on an electrical command signal.
Technical Specifications
Maximum Operating Pressure: Up to 315 bar at Port P (inlet) and 250 bar at Port T (tank/return).
Maximum Flow Rate: 40 l/min.
Pressure Stages: Available in 75 bar, 175 bar, or 310 bar maximum settings.
Hysteresis: Very low (< 1%) due to the integrated inductive position transducer and closed-loop control.
Supply Voltage: 24V DC.
Command Signals: Typically 0 to +10V (Type A1) or 4 to 20 mA (Type F1).
