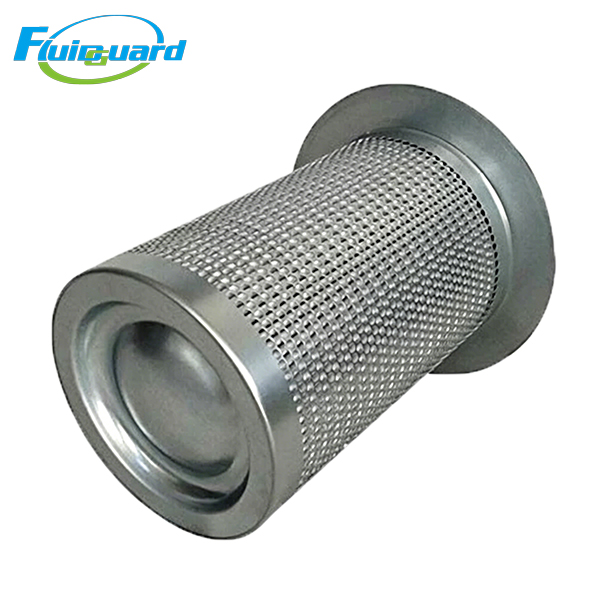

P525768 Oil Separators Filter

Model : P525768

Type : Oil Separators Filters

Replacement for : P525768

Removes submicron oil mist from high-flow compressed air, reduces oil consumption, and protects downstream pneumatic equipment in heavy industrial applications.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: P525768

Type: Flange-mounted coalescing separator cartridge

Media: HV borosilicate micro glass fiber

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 3 ppm

Dimensions:

OD: 301.8 mm

Height: 501.6 mm

Flange OD: 355.6 mm

ID: 212.9 mm

Weight: 7.8 kg

Service life: 4000 – 6000 hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.6 MPa

Working temperature: -20°C ~ 120°C

Industries: Heavy manufacturing, mining, chemical, large workshop

Features

Heavy-duty: Stainless steel inner mesh, anti-collapse structure

Long life: Premium HV media for high-flow harsh conditions

Low differential pressure: Energy saving

Description

Removes submicron oil mist from high-flow compressed air, reduces oil consumption, and protects downstream pneumatic equipment in heavy industrial applications.
