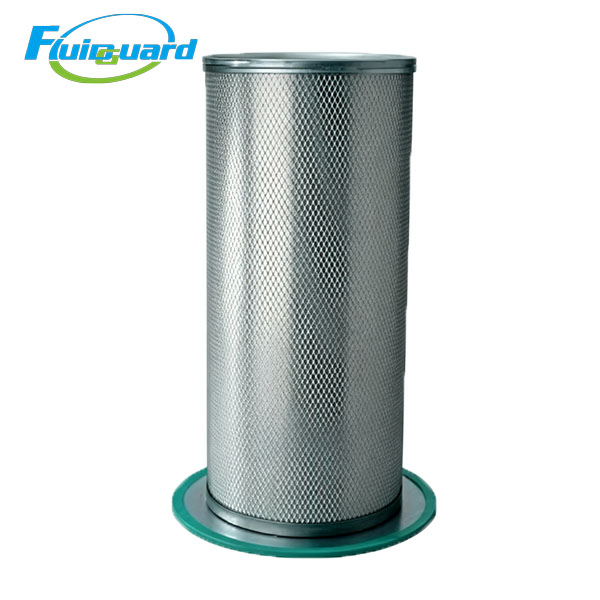

P525191 Oil Separators Filter

Model : P525191

Type : Oil Separators Filters

Replacement for : P525191

It efficiently removes oil mist from compressed air, controls residual oil content at a low level and provides reliable protection for downstream equipment in various industrial applications.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: P525191

Type: Flange-mounted coalescing air/oil separator

Media: High-efficiency HV borosilicate glass fiber

Filtration precision: ≤ 0.3 μm

Separation efficiency: ≥ 99.9%

Oil carry-over: ≤ 3 ppm

Dimensions:

Flange OD: 365 mm

Outer OD: 269.7 mm

Inner ID: 212.9 mm

Height: 603.2 mm

Weight: 11.8 kg

Service life: 4000 – 6000 working hours

Initial pressure drop: ≤ 0.025 MPa

Max working pressure: 1.3 MPa

Working temperature: -20°C ~ 120°C

Features

Standard flange design with matched gasket, fully compatible with original equipment.

Double metal cage structure, anti-collapse and corrosion resistant for heavy-duty use.

Stable performance throughout service cycle, effectively cutting maintenance costs.

Description

It efficiently removes oil mist from compressed air, controls residual oil content at a low level and provides reliable protection for downstream equipment in various industrial applications.
