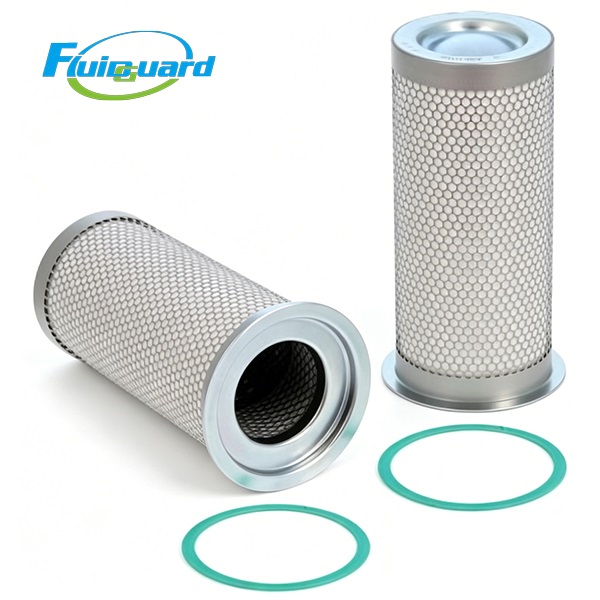

Oil Separators Filters

Part No: 250042-862

Type: Flange built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite media

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–5200 working hours

Max Working Pressure: 1.6 MPa

Operating Temperature Range: -10℃ ~ 110℃

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 5.44 kg

Overall Height: 405 mm

Barrel Outer Diameter: 210 mm

Flange Outer Diameter: 270 mm

Double-stage matched design, inner secondary fine separation core, imported HV ultra-fine glass fiber with huge oil mist holding capacity, stable coalescing performance under long-term heavy industrial load.

Optimized dense uniform pleated low-resistance layout, ultra-low initial pressure drop, effectively suppress pressure rise and reduce long-term power consumption of medium-large screw compressors.

Double-layer fully perforated galvanized anti-static inner & outer support cages, anti-corrosion, shock and vibration resistant, no deformation or collapse under high differential pressure.

Integrated thickened steel flange with high-temperature resistant composite sealing gasket, reliable sealing against temperature fluctuation to eliminate oil bypass and excessive oil residue in outlet compressed air.

It adopts advanced HV micro glass fiber coalescing technology to capture ultra-fine lubricant mist remaining after primary separation, limiting residual oil content of final outlet compressed air below 3 ppm.It fully protects downstream air dryers, precision pneumatic equipment and long-distance air transmission pipelines, drastically cuts lubricating oil consumption, supplies ultra-clean stable compressed air, and extends the overall service life of the compressor unit and matched post-processing accessories.
