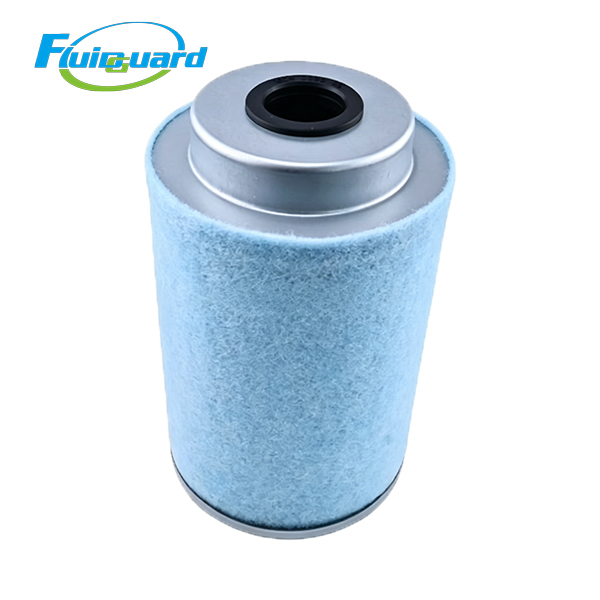

Oil Separators Filters

Part No: 92824473

Type: Small flange built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–5000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 0.85 kg

Dimensions

Barrel Outer Diameter: 111 mm

Flange Outer Diameter: 109 mm

Overall Height: 235 mm

Central Return Pipe OD: 28.5 mm

Product Features

Compact multi-layer HV micro glass fiber media, large effective filtration area, stable oil mist interception under long-term light & medium load operation.

Optimized low-resistance pleated layout, low initial pressure drop, effectively suppress pressure rise and reduce compressor power consumption.

Single-layer perforated anti-static metal inner support cage, lightweight and shock-resistant, no deformation under fluctuating system pressure.

Double supporting high-temperature composite flange gaskets, reliable sealing against temperature variation to avoid oil bypass and oil carry-over.

Product Description

It adopts high-efficiency glass fiber coalescing technology to capture ultra-fine lubricant mist in compressed air, controlling residual oil content below 3 ppm.It fully protects downstream air dryers, small precision pneumatic tools and short-distance air pipelines, greatly reduces lubricating oil consumption, provides stable clean compressed air, and extends the service life of the whole compressor unit and supporting post-processing equipment.
