Oil Separators Filters

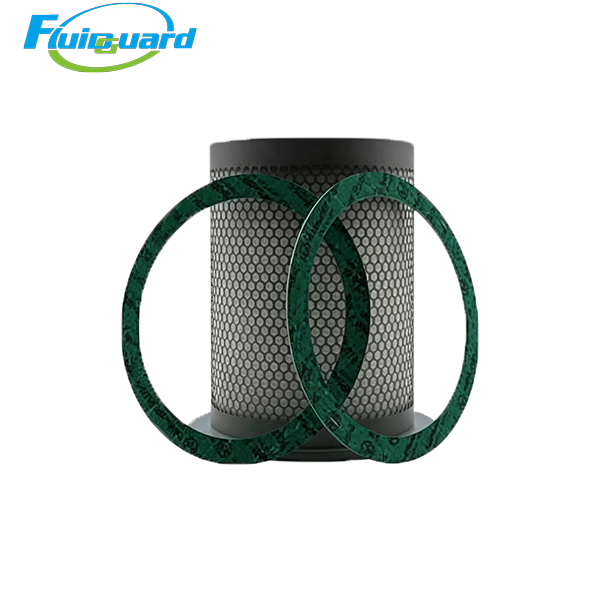

Part No: NS010420

Product Name: Cartridge Built-in Air Oil Separator Element

Filter Medium: Multi-layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤3 ppm

Service life: 4000–6000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Sealing material: High-temperature nitrile rubber O-ring

Structure: Cylindrical cartridge internal installation type

Main Features

Multi-stage gradient high-efficiency coalescing medium, excellent capture performance for submicron oil aerosol particles

Double-layer reinforced perforated metal inner & outer support cage, anti-deformation under long-term high-speed airflow impact

High temperature resistant sealing end cap, effectively prevent air bypass and separation efficiency degradation

Optimized pleating layout, large effective filtration area, low initial differential pressure

Stable coalescing performance, strong compatibility with various compressor lubricants

Application Industry

Widely used in machinery manufacturing, automotive processing, electronics, food, pharmaceutical, packaging and other industrial compressed air stations.

Brief Summary

It separates lubricating oil mist mixed in compressed air, improves air outlet quality and recycles lubricant oil to reduce continuous oil consumption of compressor host.
