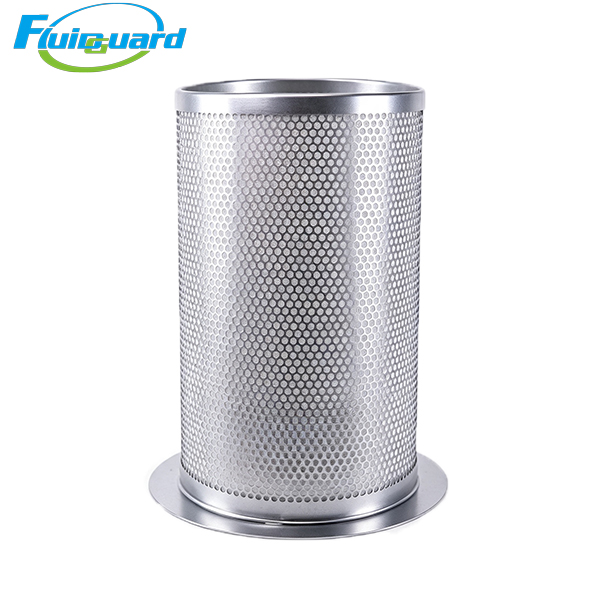

Oil Separators Filters

Part No: LE61002X

Residual oil content: ≤3 ppm

Service life: 4000–6000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Sealing material: High-temperature fluororubber composite gasket

Main Features

Standard circular flange integrated structure, accurate hole position distribution, stable installation and convenient maintenance

Multi-stage high-efficiency coalescing medium, excellent capture performance for submicron oil mist particles

Reinforced inner & outer perforated metal support cage, anti-deformation under long-term high airflow impact

High temperature resistant flat sealing gasket, effectively prevent air bypass and internal leakage

Low initial pressure drop, reduce energy consumption of screw air compressor

Optimized uniform pleating layout, balance airflow distribution and extend service cycle

Application Industry

Widely used in machinery manufacturing, automotive processing, electronics, food, pharmaceutical, packaging and other industrial compressed air stations.

Brief Summary

LE61002X is flange type built-in air oil separator element. It separates lubricating oil mist from compressed air, improves outlet compressed air cleanliness and recycles lubricant oil to lower compressor oil consumption.
