Oil Separators Filters

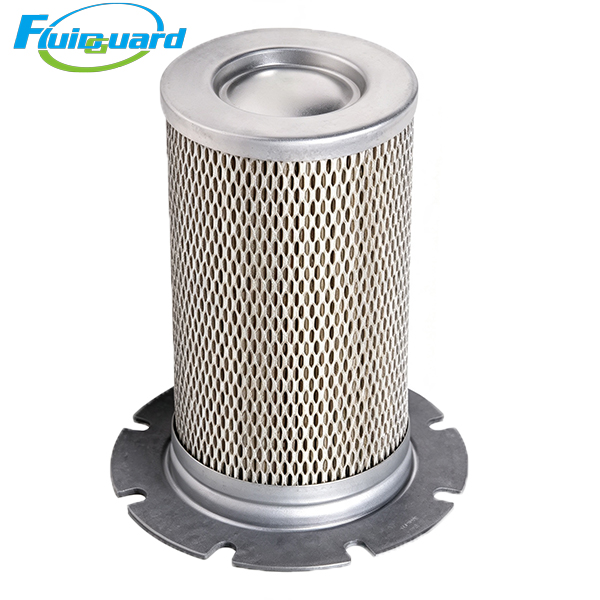

Part No: KB08000‑019

Product Name: Flange Mounted Built‑in Air Oil Separator Element

Filter Medium: Multi‑layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤3 ppm

Service life: 4000–6000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Sealing material: High‑temperature fluororubber composite flange gasket

Main Features

Multi‑stage gradient high‑efficiency coalescing medium, excellent interception performance for submicron oil mist particles inside compressed air.

Reinforced inner & outer perforated metal support cage, anti‑deformation under long‑term high‑speed airflow impact.

High temperature resistant flat sealing gasket, effectively prevent air bypass and continuous decline of separation efficiency.

Low initial pressure drop, reduce continuous energy consumption of screw air compressor.

Optimized uniform pleating layout, large effective filtration area, balance airflow distribution and extend service cycle.

Application Industry

Widely used in machinery manufacturing, automotive processing, electronics, food, pharmaceutical, packaging and other industrial compressed air stations.

Brief Summary

It separates lubricating oil mist from compressed air, improves outlet compressed air cleanliness and recycles lubricant oil to lower compressor continuous oil consumption.
