Oil Separators Filters

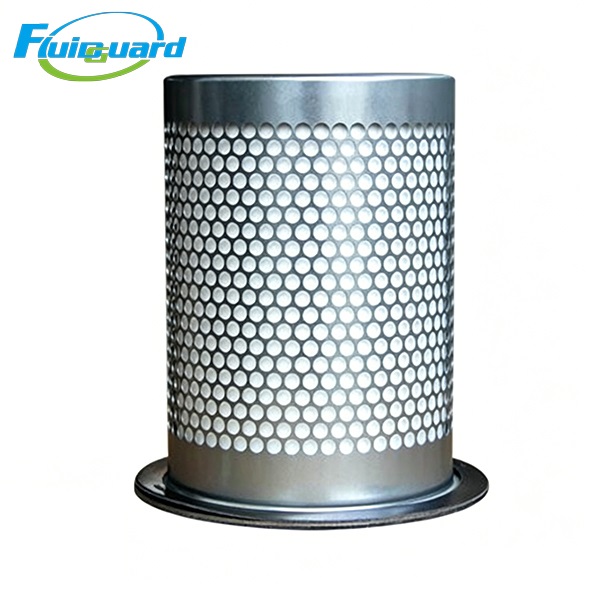

PN: DB2023

Type: Flange-mounted coalescing separator cartridge

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 3 ppm

Dimensions:

Outer Diameter (OD): 215 mm

Height: 280 mm

Inner Diameter (ID): 140 mm

Flange OD: 320 mm

Weight: 6.2 kg

Service life: 3500 – 5000 working hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.6 MPa

Working temperature: -20°C ~ 120°C

Application fields: General manufacturing, workshops, pneumatic systems

Features

High dirt-holding capacity & low flow resistance design, low pressure drop for energy saving

Anti-static glass fiber layer, explosion-proof and safe for industrial use

Reinforced steel inner mesh, anti-collapse structure for long service life

Description

It effectively removes oil mist from compressed air, reduces oil consumption, and provides reliable protection for downstream pneumatic equipment.
