Oil Separators Filters

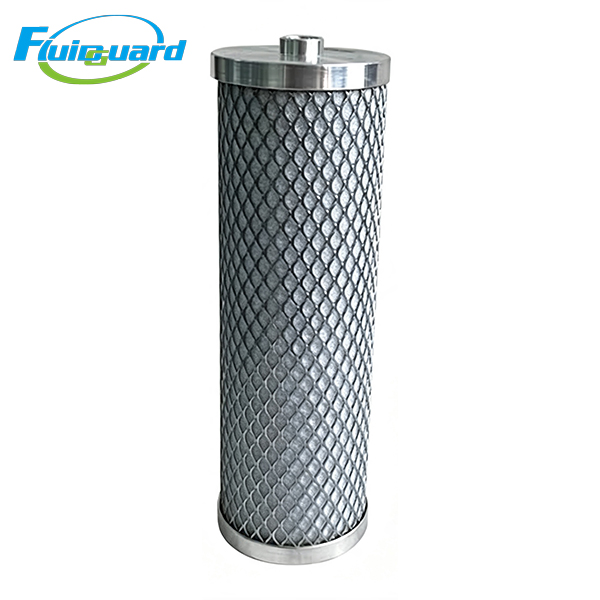

Part No: CC1058883

Product Name: Cartridge Built-in Air Oil Separator Element

Filter Medium: Multi-layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤3 ppm

Service life: 4000–6000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Structure: Straight cylindrical cartridge type

Main Features

Multi-stage gradient high-efficiency coalescing medium, excellent capture performance for submicron oil mist particles in compressed air.

Reinforced inner & outer perforated metal support cage, anti-deformation under long-term high-speed airflow impact.

Integral PU sealed end cap, effectively prevent air bypass and continuous decline of separation efficiency.

Low initial pressure drop, reduce continuous energy consumption of screw air compressor.

Optimized uniform pleating layout, large effective filtration area, stable coalescing performance and good compatibility with various compressor lubricants.

Application Industry

Widely used in machinery manufacturing, automobile processing, electronics, food, pharmaceutical, packaging and other industrial compressed air stations.

Brief Summary

It separates lubricating oil mist from compressed air, improves outlet compressed air cleanliness and recycles lubricant oil to lower continuous oil consumption of compressor main unit.
