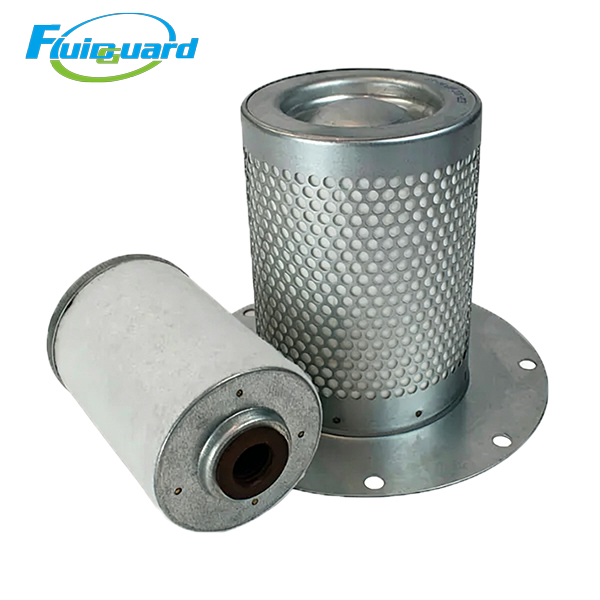

6.4272.2 Oil Separators Filter

Model : 6.4272.2

Type : Oil Separators Filters

Replacement for : 6.4272.2

Removes oil mist from compressed air, reduces oil consumption, protects downstream pneumatic equipment.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

PN: 6.4272.2

Type: Flange-mounted coalescing separator cartridge

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 3 ppm

Dimensions:

OD: 330 mm

Height: 525 mm

ID: 210 mm

Weight: 14.6 kg

Service life: 6000–8000 hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.6 MPa

Working temperature: -20°C ~ 120°C

Fields: Manufacturing, automotive, electronics, food beverage, air stations

Features

Reinforced steel mesh inner core, anti-collapse, long service life

Low pressure drop design, energy saving

Anti-static conductive structure, safe for harsh industrial conditions

Viton seal for high temperature & chemical resistance

Description

Removes oil mist from compressed air, reduces oil consumption, protects downstream pneumatic equipment.
