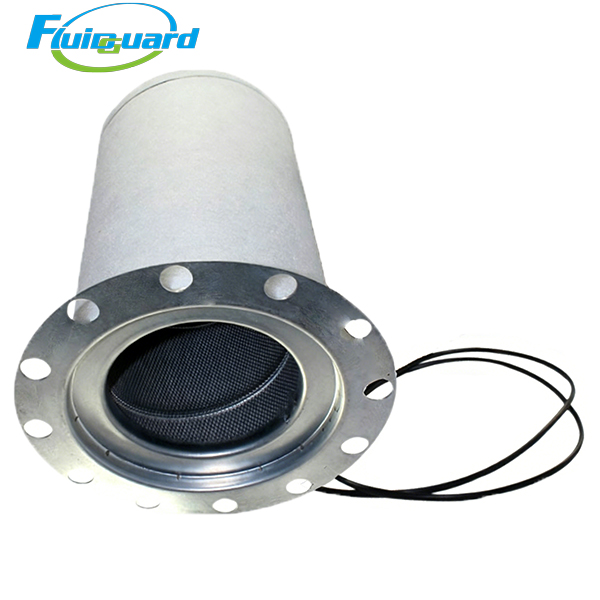

Model : 6.3571.0
Type : Oil Separators Filters
Replacement for : 6.3571.0
Removes oil mist to ≤3 ppm, reduces oil consumption, protects downstream equipment.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 6.3571.0
Type: Internal flanged coalescing separator
Filtration: ≤ 0.1 μm
Efficiency: ≥ 99.99%
Oil Carry-over: ≤ 1–3 ppm
Life: 4000–6000 hours
Max Pressure: 1.6 MPa
Temperature: -20°C ~ 120°C
Dimensions: H380 × OD220 × ID157 mm
Weight: 5.2 kg
Field: Industrial screw compressors, heavy-duty pneumatic systems
Features
Anti-static conductive, explosion-proof
Low pressure drop, energy saving
Heavy-duty steel flange & housing
High efficiency, ultra-low residual oil
Description
Removes oil mist to ≤3 ppm, reduces oil consumption, protects downstream equipment.
