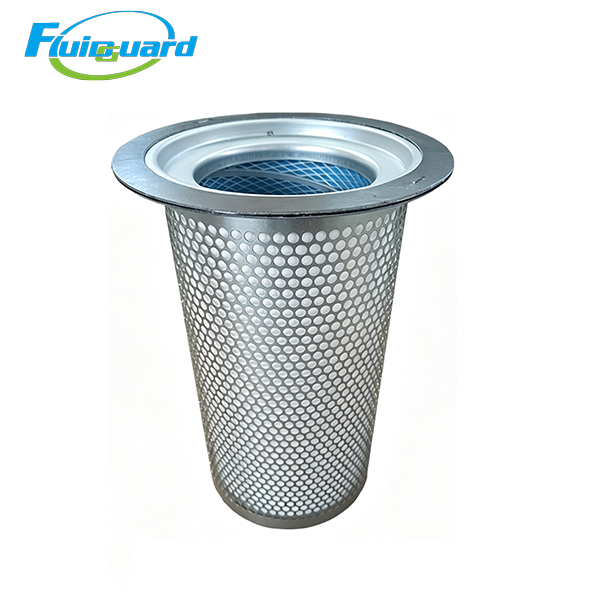

Oil Separators Filters

Model: 6.3567.0

Core Technical Specifications

Separation Precision: 0.01 μm submicron lubricant oil mist

Residual Oil Carryover of Outlet Compressed Air: ≤3 ppm

Separation Efficiency: 99.99%

Filter Media: Multi-layer gradient HV borosilicate glass fiber composite, anti-static, high temperature resistant & anti-oil saturation

Max Working Pressure: 16 bar (232 PSIG)

Continuous Operating Temperature: ≤110℃

Standard Service Life: 4,000–6,000 operating hours; mandatory replacement once differential pressure exceeds 0.8 bar

Initial Differential Pressure: ≤0.02 MPa

Key Product Advantages

Two-stage gradient coalescence greatly reduces oil consumption

Multi-density graded glass fiber traps submicron oil mist generated during screw compression. Coalesced liquid lubricant flows back to the compressor oil tank via central oil return tube, stabilizing downstream compressed air cleanliness and lowering lubricant refilling frequency.

Low initial differential pressure for energy saving

Deep-pleated large filtration area optimizes internal oil-gas flow channels. Pressure drop remains stable under 24/7 full-load continuous running, avoiding extra motor load and higher power consumption caused by blocked separators.

Large oil & sludge holding capacity to extend maintenance intervals

Thick gradient fiber matrix holds abundant coalesced oil, carbon sludge and metal wear debris. It resists fast clogging even with aged high-temperature lubricant oil, suitable for uninterrupted heavy industrial production.

Reinforced anti-corrosion heavy-duty structure

Galvanized metal mesh and heat-resistant composite gaskets endure long-term hot oil-gas mixed environments. Effectively avoid media rupture and fiber shedding to stop secondary oil contamination of inline precision filters, laser equipment and spraying production lines.

Working Principle

High-temperature high-pressure oil-gas mixture discharged from screw airend penetrates glass fiber media from outside to inside. 0.01μm tiny oil mist particles collide and merge into large liquid droplets on fiber surfaces. Oil droplets sink to separator bottom by gravity and flow back to lube tank through central return pipe. Degreased clean compressed air is delivered to refrigerated dryers and inline precision filter systems.

Application Industries

widely used in:

Machining workshops, automotive electrostatic spraying, packaging & printing, textile mills, food sterile packaging, laser cutting equipment, pharmaceutical cleanrooms, centralized factory compressed air stations, mining and construction air supply systems.
