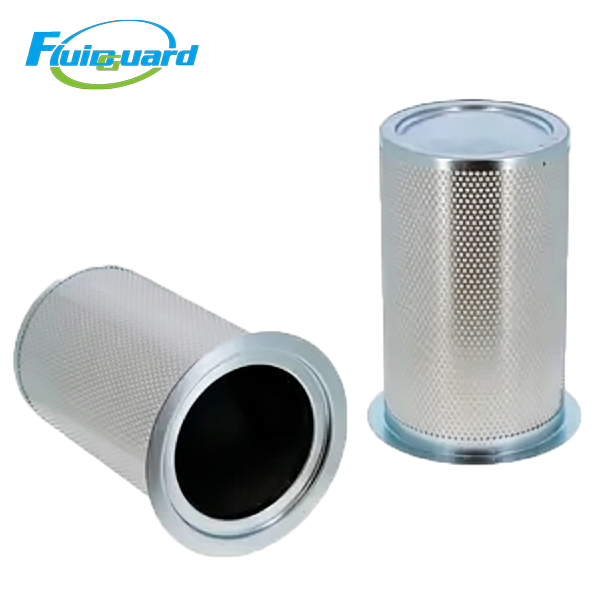

Oil Separators Filters

PN: 537704312120P

Type: Internal Coalescing Separator Cartridge

Specifications

Filtration: ≤0.1 μm

Efficiency: ≥99.99%

Oil Carry-over: ≤1–3 ppm

Life: 6000–8000 hours

Initial ΔP: ≤0.02 MPa

Max Pressure: 1.6 MPa

Temperature: -20°C ~ 120°C

Dimensions: H280 × OD217 × ID156 mm

Weight: 5.0 kg

Field: Industrial screw compressors, heavy-duty pneumatic systems

Features

High-efficiency glass fiber, ultra-low residual oil

Anti-static conductive, explosion-proof

Low pressure drop, energy saving

Flange mounting, direct OEM replacement

Rigid metal construction, long service life

Description

It efficiently removes oil mist, reduces oil consumption, and protects downstream pneumatic equipment.
