Oil Separators Filters

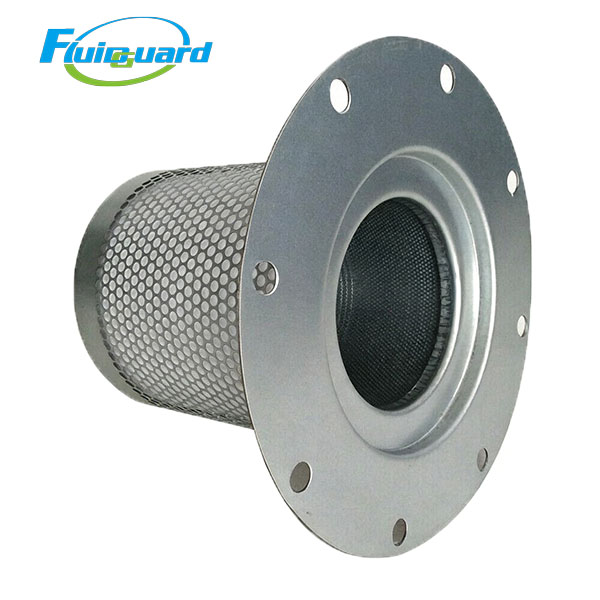

Part No: 4900553101

Filter Media: Multi-layer borosilicate micro glass fiber composite coalescing media

Filtration Precision: ≤0.1 μm fine oil mist interception

Separation Efficiency: ≥99.999%

Residual Oil Carry-over in Air Outlet: ≤3 ppm

Standard Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -10℃ ~ 100℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Dimensions (mm)

Cartridge Outer Diameter: 130

Central Inner Hole Thread Diameter: M42×2

Overall Height: 325

Application Scenarios

Electronic assembly workshops, small hardware precision machining, miniature injection molding factories, packaging production lines, decentralized air supply for small factories, laboratory low-oil clean air production

Product Features

Compact multi-gradient dense glass fiber media with stable oil mist storage capacity, resistant to saturation under continuous light & medium loads, stably control residual oil ≤3 ppm throughout full service cycle.

Short deep-pleated low-resistance cylinder design, slow differential pressure rise under long full-load continuous operation, effectively reduce power consumption of 15–30kW small main unit.

Double-layer perforated galvanized anti-static inner & outer support cages, anti-corrosion and anti-pressure impact; filter media will not deform or collapse under rated airflow, eliminate static ignition risk of oil mist.

Wear-resistant nitrile rubber gasket features excellent high temperature resistance & anti-aging performance, reliable sealing under frequent startup/shutdown and temperature fluctuation, prevent air-oil bypass and excessive oil carry-over faults.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to capture micron-scale lubricating oil aerosol in low-flow compressed air. Separated lubricant flows back to the compressor main unit via central bottom gravity oil return port for circulation reuse, greatly reduce oil refilling frequency and extend overall machine maintenance cycle.

It fully protects downstream refrigerated dryers, adsorption dryers, precision pneumatic valves and spraying equipment, lower breakdown frequency and maintenance cost of small air post-processing purification system.
