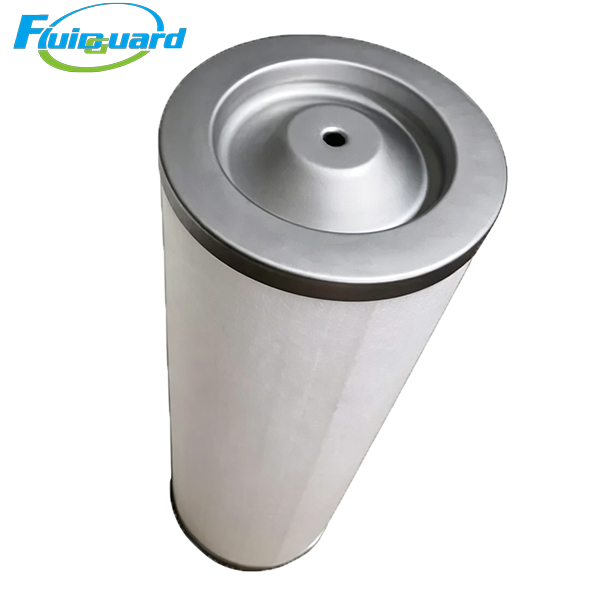

444213 Oil Separators Filter

Model : 444213

Type : Oil Separators Filters

Replacement for : 444213

Removes oil mist from compressed air, reduces oil consumption, protects downstream pneumatic equipment.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

PN: 444213

Type: Flange-mounted coalescing separator cartridge

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 3 ppm

Dimensions:

OD: 220 mm

Height: 320 mm

ID: 150 mm

Flange OD: 220 mm

Weight: 5.8 kg

Service life: 3500–4000 hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.6 MPa

Working temperature: -10°C ~ 100°C

Fields: General industry, workshops, small air stations

Features

Reinforced steel mesh & inner core, anti-collapse, long service life

Low pressure drop design, energy saving

Anti-static conductive structure, safe for industrial conditions

Description

Removes oil mist from compressed air, reduces oil consumption, protects downstream pneumatic equipment.
