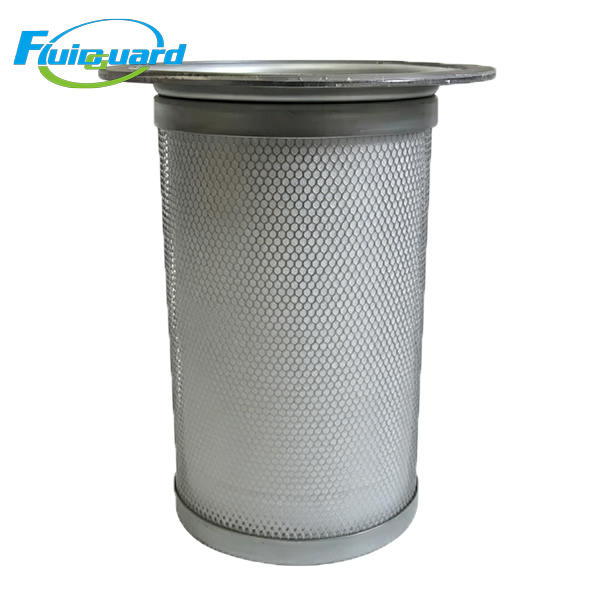

4080306015 Oil Separators Filter

Model : 4080306015

Type : Oil Separators Filters

Replacement for : 4080306015

Removes oil mist to ≤3 ppm, reduces oil consumption, protects downstream pneumatic equipment.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

PN: 4080306015

Media: HV Borosilicate Micro Glass Fiber

Filtration: ≤ 0.1 μm

Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Life: 3500–5000 hours

Max Pressure: 1.6 MPa

Temperature: -10°C ~ 120°C

Seal: NBR O-ring

Dimensions: H360 × OD245 × ID180 mm,

Weight: 6.8 kg

Field: Industrial screw compressors, heavy-duty stationary units

Features

6-bolt flange, heavy-duty industrial design

Anti-static conductive, explosion-proof

Low pressure drop, energy saving

High dirt holding capacity, long service life

Ultra-low residual oil ≤3 ppm

Description

Removes oil mist to ≤3 ppm, reduces oil consumption, protects downstream pneumatic equipment.
