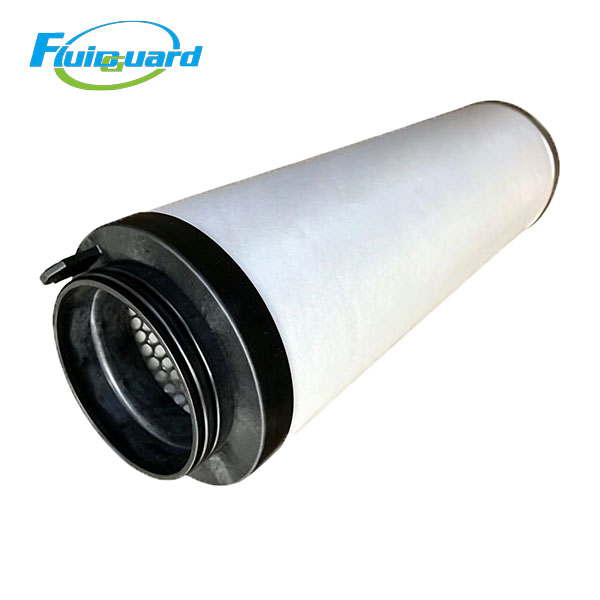

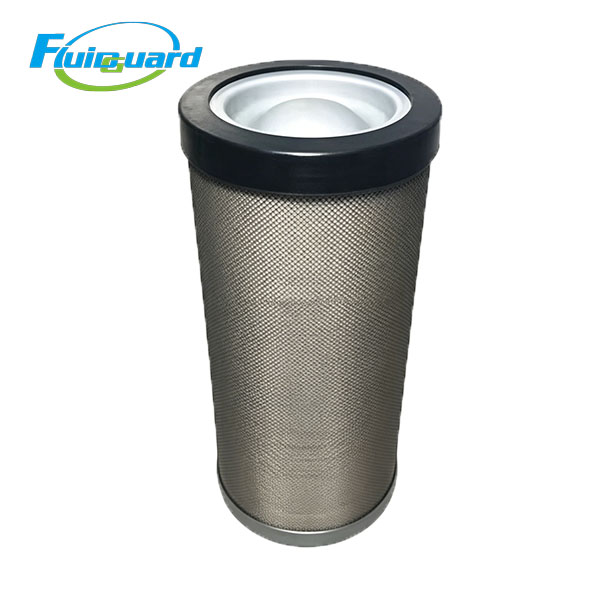

3422012600 Oil Separators Filter

Model : 3422012600

Type : Oil Separators Filters

Replacement for : 3422012600

It removes oil mist from compressed air, minimizes oil consumption, and protects downstream equipment in general industry, construction, and manufacturing.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: 3422012600

Type: Flange-mounted air/oil separator cartridge

Media: High-efficiency borosilicate glass fiber

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.9%

Oil carry-over: ≤ 3 ppm

Dimensions:

Flange OD: 240 mm

Outer OD: 174 mm

Inner ID: 118 mm

Height: 291 mm

Service life: 3500–6000 working hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.0–1.3 MPa

Max working temperature: ≤ 120°C

Features

High-efficiency coalescing: Captures submicron oil mist, residual oil <3 ppm.

Robust construction: Perforated metal cages for structural stability.

Cost-effective: Longer service life reduces maintenance cost.

Description

It removes oil mist from compressed air, minimizes oil consumption, and protects downstream equipment in general industry, construction, and manufacturing.
