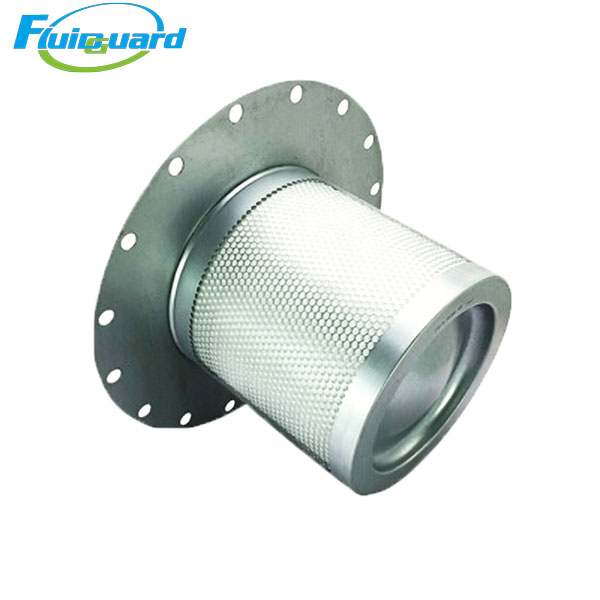

1614905699 Oil Separators Filter

Model : 1614905699

Type : Oil Separators Filters

Replacement for : 1614905699

It efficiently separates oil mist from compressed air, reduces oil consumption, and protects downstream equipment in manufacturing, petrochemical, and food & beverage industries.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: 1614905699

Type: Flange-mounted primary air/oil separator

Media: High-efficiency borosilicate glass fiber

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 3 ppm

Dimensions:

Flange OD: 596 mm

Inner ID: 350 mm

Height: 345 mm

Weight: 18.5 kg

Service life: 4000–6000 working hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.3 MPa

Max working temperature: ≤ 120°C

Features

High-efficiency coalescing: Removes submicron oil mist, residual oil <3 ppm.

Heavy-duty flange: 15 bolt holes for stable mounting.

Large dirt-holding capacity: Multi-layer media extends service life.

Description

It efficiently separates oil mist from compressed air, reduces oil consumption, and protects downstream equipment in manufacturing, petrochemical, and food & beverage industries.
