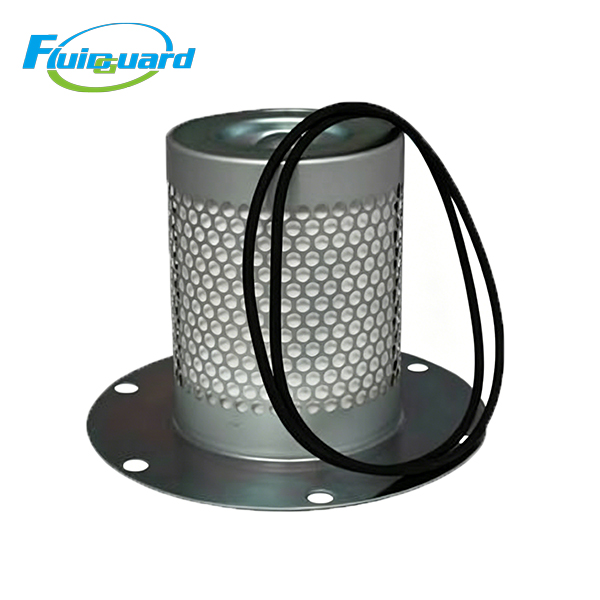

Oil Separators Filters

Part No: 3422004600

Type: Flange-mounted built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite media

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 2.9 kg

Dimensions

Cartridge Outer Diameter: 178 mm

Flange Outer Diameter: 246 mm

Overall Height: 295 mm

Application Scenarios

Road construction, mining quarries, pipeline laying, municipal engineering, tunnel projects and other outdoor high-dust, heavy vibration working sites

Product Features

Multi-layer dense HV ultra-fine borosilicate glass fiber media with excellent oil mist holding capacity, stable coalescing performance under long-term continuous bumpy harsh outdoor operating conditions.

Optimized uniform pleated low-resistance layout with ultra-low initial pressure drop, slow differential pressure rise during long-cycle operation to effectively reduce diesel fuel consumption of medium mobile air compressors.

Double-layer fully perforated galvanized anti-static inner & outer support cages, anti-corrosion, shock and vibration resistant, no deformation or collapse under high differential pressure and severe jolting.

Thickened multi-hole steel flange equipped with wide-temperature resistant composite sealing gasket, reliable sealing against dramatic day-night temperature fluctuations to eliminate oil bypass and over-limit residual oil in outlet compressed air.

Product Description

It adopts advanced HV borosilicate glass fiber coalescing technology to capture ultra-fine lubricant aerosol suspended in compressed air, controlling residual oil content of outlet compressed air below 3 ppm.It delivers comprehensive protection for downstream air dryers, pneumatic rock drills, sandblasting equipment and long-distance air transmission pipelines, drastically reduces lubricating oil refilling frequency, supplies ultra-clean stable compressed air, and extends the full service cycle of the whole mobile compressor unit and all supporting post-processing accessories.
