Oil Separators Filters

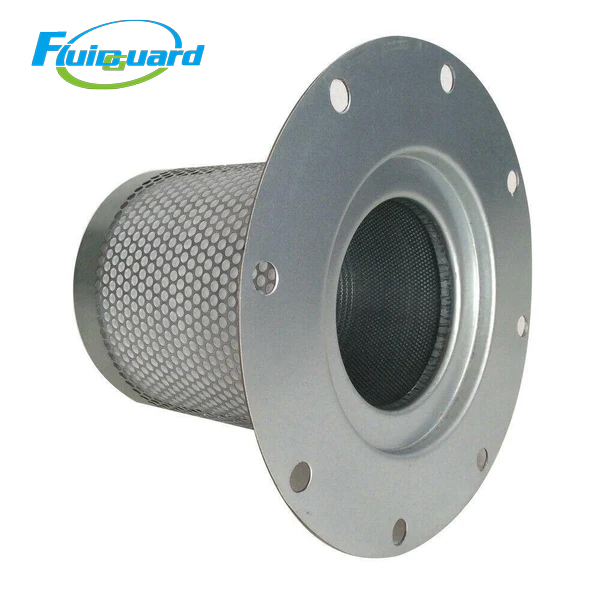

Part No: 3001500624

Filter Media: Imported HV multi-layer borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.999%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 4000–6000 working hours; shorten to 2800h under dusty heavy-duty environment

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Dimensions (mm)

Flange Outer Diameter: 462

Cartridge Outer Diameter: 375

Central Inner Hole Diameter: 268

Overall Height: 565

Application Scenarios

Automotive component precision machining, heavy machinery foundry & casting, large injection molding plants, mine & shipyard centralized compressed air stations, chemical industry large-scale air supply systems, food & pharmaceutical clean-air production workshops

Product Features

All-in-one maintenance kit integrated with separator core and full set of fluorine rubber seals, one-stop replacement without separate procurement of gaskets.

Oversized multi-gradient high-density glass fiber media with massive oil mist storage capacity, anti-saturation under long-term continuous heavy loads, stably maintain residual oil ≤3 ppm throughout full service cycle.

Extra tall deeply pleated low-resistance cylinder design, slow differential pressure rise during long full-load continuous operation, effectively reduce power consumption of 132–160kW main unit.

Double-layer thickened galvanized perforated anti-static inner & outer support cages, anti-corrosion and anti-pressure impact; filter media will not deform or collapse under maximum airflow, eliminate static ignition risk of oil mist. Fluorine rubber O-rings feature excellent high temperature resistance & anti-aging performance, reliable sealing under frequent startup/shutdown and temperature fluctuation, prevent air-oil bypass and excessive oil carry-over faults.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to capture micron-scale lubricating oil aerosol in large-flow compressed air. Separated lubricant flows back to the compressor main unit via central bottom gravity oil return tube for circulation reuse, greatly reduce oil refilling frequency and extend overall machine maintenance cycle.

It fully protects downstream refrigerated dryers, adsorption dryers, heavy-duty precision pneumatic valves and industrial spraying equipment, lower breakdown frequency and maintenance cost of large-scale post-air-treatment purification system. The matched complete fluorine rubber sealing set ensures zero leakage after one-time replacement.
