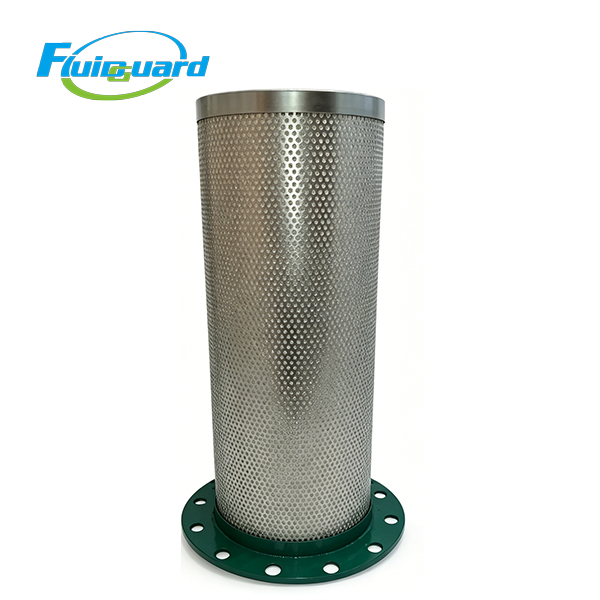

Oil Separators Filters

Part No: 2906002000

Filter Media: Imported HV multi-layer borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.999%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 3500–5200 working hours; shorten to 2800h under dusty heavy-duty environment

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Dimensions (mm)

Cartridge Outer Diameter: 275

Central Inner Hole Diameter: 145

Overall Height: 820

Application Scenarios

Auto parts precision machining, general machinery workshops, medium injection molding factories, electronic assembly production lines, factory centralized air supply stations, food packaging low-oil clean air production

Product Features

Extra tall multi-gradient high-density glass fiber media with massive oil mist storage capacity, anti-saturation under long-term continuous heavy load, stably control residual oil ≤3 ppm throughout full service cycle.

Deeply pleated low-resistance long cylinder, slow differential pressure rising under long full-load running, effectively reduce power consumption of 90–132kW main unit.

Double-layer thickened perforated galvanized anti-static inner & outer support cages, anti-corrosion & anti-pressure surge; filter media will not deform or collapse under rated airflow, eliminate static ignition risk of oil mist.

Standard top sealing structure fully matched original external separator tank mounting dimension. Integrated nitrile rubber gasket resists high temperature aging, reliable sealing under frequent start-stop & temperature fluctuation, avoid oil bypass and excessive oil carry-over failure.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to intercept micron-level lubricant oil aerosol in medium-flow compressed air. Separated lubricant flows back to compressor main unit via bottom central gravity oil return port for recycling, greatly cut lubricating oil consumption and extend overall machine maintenance interval.

It fully protects downstream refrigerated dryers, adsorption dryers, precision pneumatic valves and spraying equipment, lower breakdown frequency and maintenance cost of air post-processing purification system.
