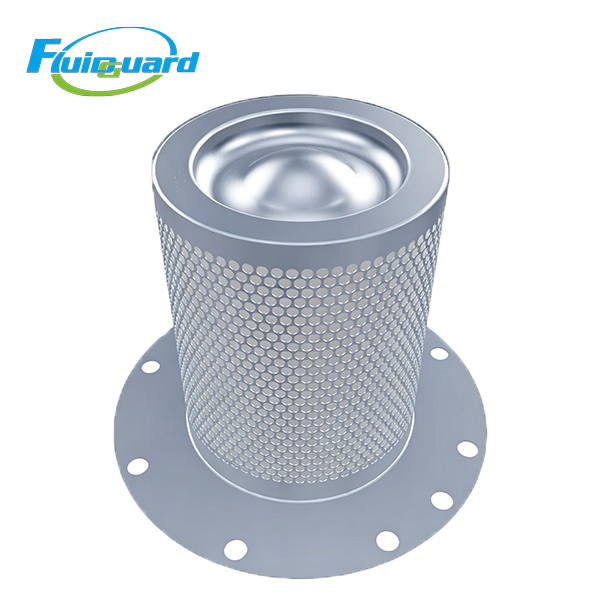

2901056622 Oil Separators Filter

Model : 2901056622

Type : Oil Separators Filters

Replacement for : 2901056622

Removes submicron oil mist from compressed air, reduces oil consumption, and protects downstream pneumatic equipment in general industry and manufacturing.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: 2901056622

Type: Flange-mounted coalescing separator cartridge

Media: HV borosilicate micro glass fiber

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 3 ppm

Dimensions:

OD: 215 mm

Height: 230 mm

Weight: 3.2 kg

Service life: 3500 – 5200 hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.6 MPa

Working temperature: -20°C ~ 120°C

Application

Industries: General industry, workshop, manufacturing

Features

High efficiency: 0.1μm precision, meets ISO 8573-1 Class 1

Compact design: 230mm height for 37–90kW units

Anti-collapse: Stainless steel inner mesh, heavy-duty end caps

Long life: Premium media for industrial conditions

Description

Removes submicron oil mist from compressed air, reduces oil consumption, and protects downstream pneumatic equipment in general industry and manufacturing.
