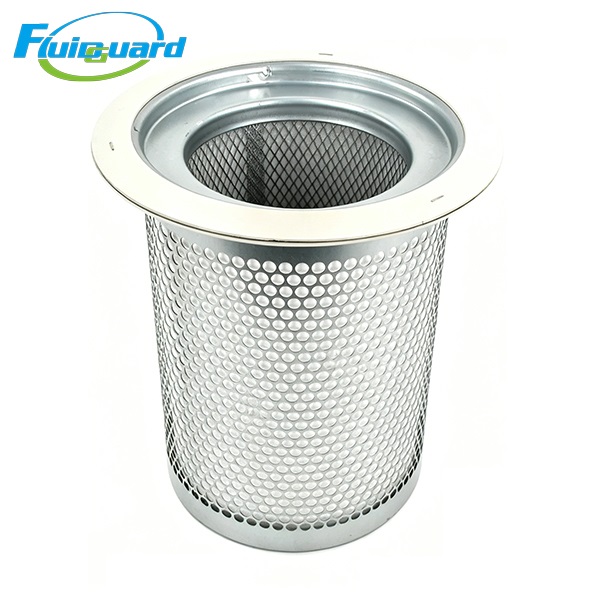

2901043200 Oil Separators Filter

Model : 2901043200

Type : Oil Separators Filters

Replacement for : 2901043200

It efficiently removes oil mist from compressed air, reduces oil consumption, and protects downstream pneumatic equipment.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

PN: 2901043200

Type: Flange-mounted coalescing separator cartridge

Filtration precision: ≤ 0.1 μm

Separation efficiency: ≥ 99.99%

Oil carry-over: ≤ 2–3 ppm

Dimensions:

OD: 213 mm

Height: 270 mm

ID: 157 mm

Flange OD: 289 mm

Weight:4.2 kg

Service life: 3500 – 6000 working hours

Initial pressure drop: ≤ 0.02 MPa

Max working pressure: 1.6 MPa

Working temperature: -20°C ~ 120°C

Application fields: Industrial manufacturing, air stations, pneumatic systems

Features

Reinforced steel inner mesh, anti-collapse & long service life

Anti-static design for heavy-duty industrial safety

Low pressure drop, energy saving in operation

Description

It efficiently removes oil mist from compressed air, reduces oil consumption, and protects downstream pneumatic equipment.
